Lockout AT A GLANCE...

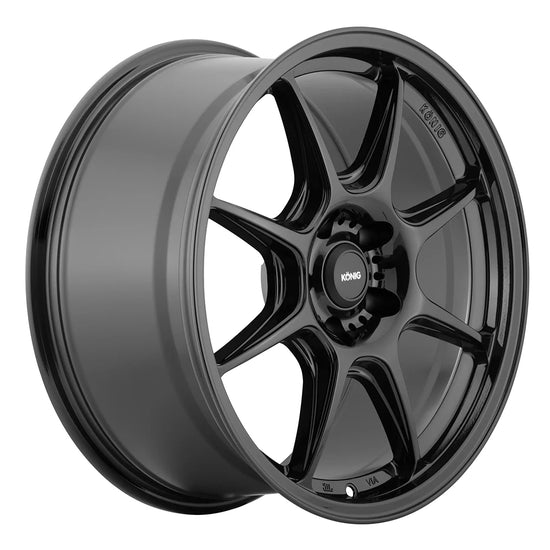

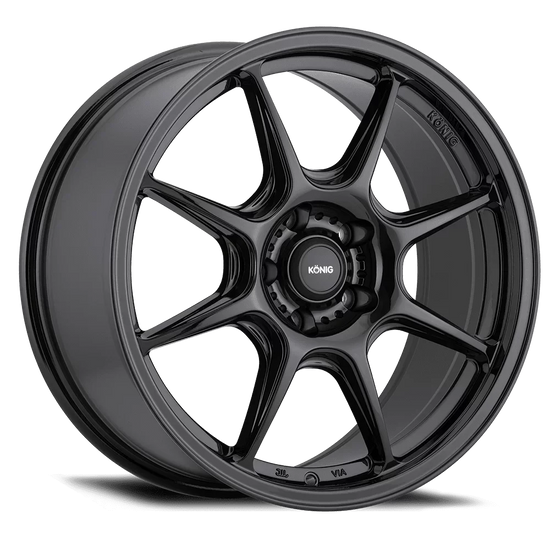

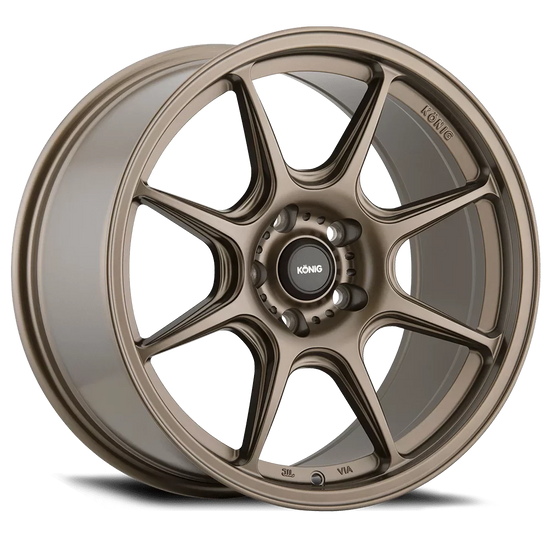

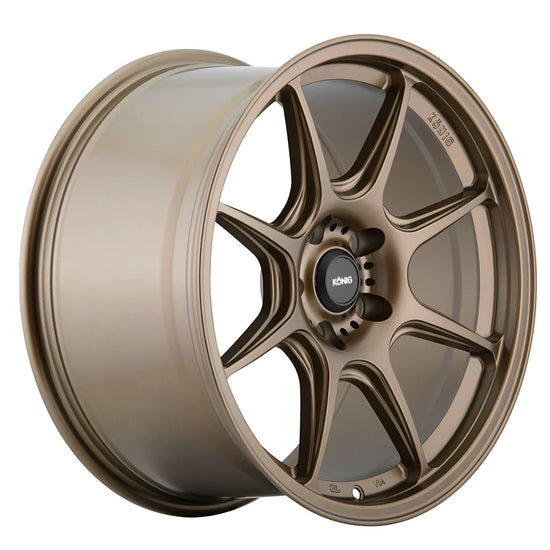

The Lockout is a tuner inspired, 8-spoke wheel that is able to provide many popular vehicles with a more aggressive stance. The Lockout is offered in 15×7″, 16×7.5″, 17×8.″, 18×8.5″, 18×9.5″ and finished in Bronze and Gloss Black with Konig’s unque dual drill hole pcd.
View Specs & Sizing
BUY NOW!-
15x7
-
16X7.5
-
17x8
-
18x8.5
18x9.5
Sizing:
-
4-Lug- 5-Lug
6-Lug- Lightweight
- Low Offsets
- Flow Formed
- Back Cut
- Ball Cut
- Knurled Bead Seats
Features:
| Konig Part# | Size | PCD | Offset (mm) | Finish | Center Bore | Construction | Net Weight (lb) | |
|---|---|---|---|---|---|---|---|---|
| LK75100385 | 15_7 | 4_100 | 38 | GLOSS BLACK | 73.1 | CAST | 13.39 lbs | |
| LK75100388 | 15_7 | 4_100 | 38 | MATTE BRONZE | 73.1 | CAST | 13.39 lbs | |
| LK76100358 | 16X7.5 | 4X100 | 35 | MATTE BRONZE | 73.1 | CAST | 17.79 lbs | |
| LK76108408 | 16X7.5 | 4X108 | 40 | MATTE BRONZE | 73.1 | CAST | 17.38 lbs | |
| LK76510455 | 16_7.5 | 5_100 | 45 | GLOSS BLACK | 73.1 | CAST | 16.89 lbs | |
| LK76512455 | 16_7.5 | 5_112 | 45 | GLOSS BLACK | 66.6 | CAST | 16.89 lbs | |
| LK76514405 | 16_7.5 | 5_114.3 | 40 | GLOSS BLACK | 73.1 | CAST | 17.38 lbs | |
| LK76514408 | 16_7.5 | 5_114.3 | 40 | MATTE BRONZE | 73.1 | CAST | 17.38 lbs | |
| LK87100455 | 17_8 | 4_100 | 45 | GLOSS BLACK | 73.1 | CAST | 19.98 lbs | |
| LK87100458 | 17_8 | 4_100 | 45 | MATTE BRONZE | 73.1 | CAST | 19.98 lbs | |
| LK87108405 | 17_8 | 4_108 | 40 | GLOSS BLACK | 73.1 | CAST | 20.57 lbs | |
| LK87108408 | 17_8 | 4_108 | 40 | MATTE BRONZE | 73.1 | CAST | 20.57 lbs | |
| LK87510385 | 17_8 | 5_100 | 38 | GLOSS BLACK | 73.1 | CAST | 20.79 lbs | |
| LK87510388 | 17_8 | 5_100 | 38 | MATTE BRONZE | 73.1 | CAST | 20.79 lbs | |
| LK87512435 | 17_8 | 5_112 | 43 | GLOSS BLACK | 66.6 | CAST | 20.35 lbs | |
| LK87512438 | 17_8 | 5_112 | 43 | MATTE BRONZE | 66.6 | CAST | 20.35 lbs | |
| LK87514435 | 17_8 | 5_114.3 | 43 | GLOSS BLACK | 73.1 | CAST | 20.35 lbs | |
| LK87514438 | 17_8 | 5_114.3 | 43 | MATTE BRONZE | 73.1 | CAST | 20.35 lbs | |
| LK88508435 | 18_8.5 | 5_108 | 43 | GLOSS BLACK | 73.1 | CAST | 21.69 lbs | |
| LK88508438 | 18_8.5 | 5_108 | 43 | MATTE BRONZE | 73.1 | CAST | 21.69 lbs | |
| LK88510435 | 18_8.5 | 5_100 | 43 | GLOSS BLACK | 73.1 | CAST | 21.69 lbs | |
| LK88510438 | 18_8.5 | 5_100 | 43 | MATTE BRONZE | 73.1 | CAST | 21.69 lbs | |
| LK88512435 | 18_8.5 | 5_112 | 43 | GLOSS BLACK | 66.6 | CAST | 21.69 lbs | |
| LK88512438 | 18_8.5 | 5_112 | 43 | MATTE BRONZE | 66.6 | CAST | 21.69 lbs | |
| LK88514355 | 18_8.5 | 5_114.3 | 35 | GLOSS BLACK | 73.1 | CAST | 22.38 lbs | |
| LK88514358 | 18_8.5 | 5_114.3 | 35 | MATTE BRONZE | 73.1 | CAST | 22.38 lbs | |
| LK88514455 | 18_8.5 | 5_114.3 | 45 | GLOSS BLACK | 73.1 | CAST | 21.49 lbs | |
| LK88514458 | 18_8.5 | 5_114.3 | 45 | MATTE BRONZE | 73.1 | CAST | 21.49 lbs | |
| LK88520355 | 18_8.5 | 5_120 | 35 | GLOSS BLACK | 72.6 | CAST | 22.38 lbs | |
| LK88520358 | 18_8.5 | 5_120 | 35 | MATTE BRONZE | 72.6 | CAST | 22.38 lbs | |
| LK89514225 | 18_9.5 | 5_114.3 | 22 | GLOSS BLACK | 73.1 | CAST | 22.77 lbs | |
| LK89514228 | 18_9.5 | 5_114.3 | 22 | MATTE BRONZE | 73.1 | CAST | 22.77 lbs | |
| LK89514355 | 18_9.5 | 5_114.3 | 35 | GLOSS BLACK | 73.1 | CAST | 21.56 lbs | |
| LK89514358 | 18_9.5 | 5_114.3 | 35 | MATTE BRONZE | 73.1 | CAST | 21.56 lbs |
