F6SX
F6SX AT A GLANCE...

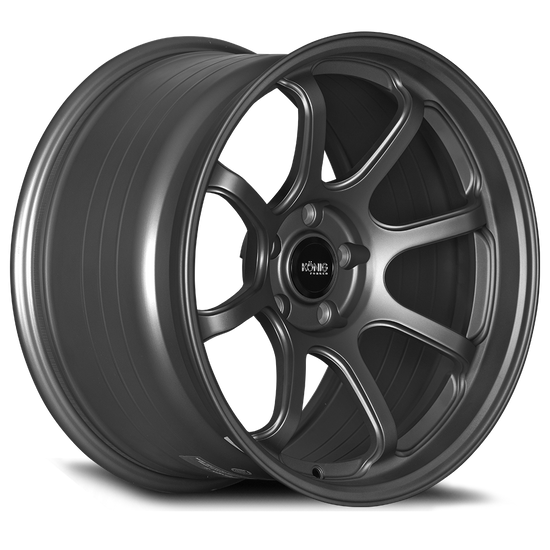

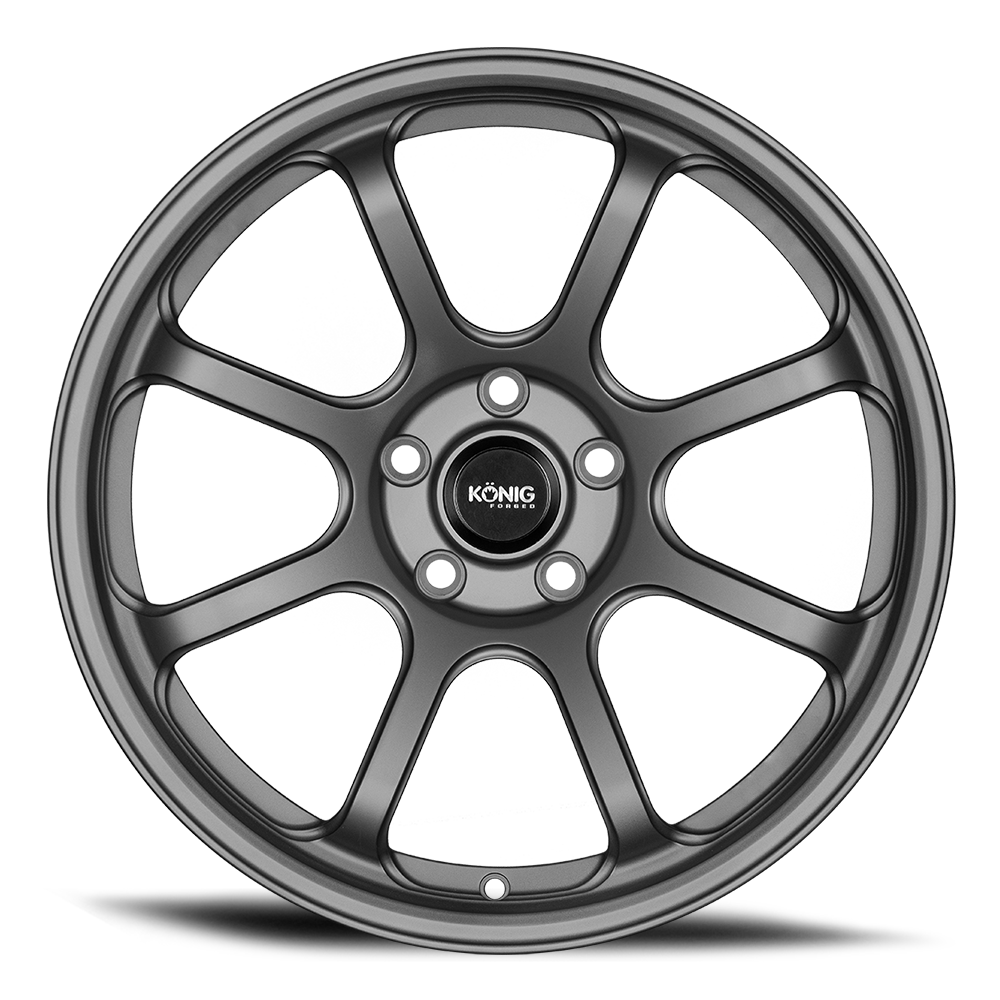

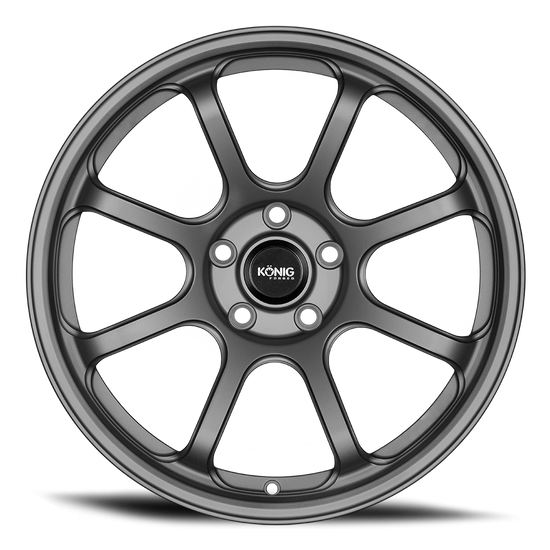

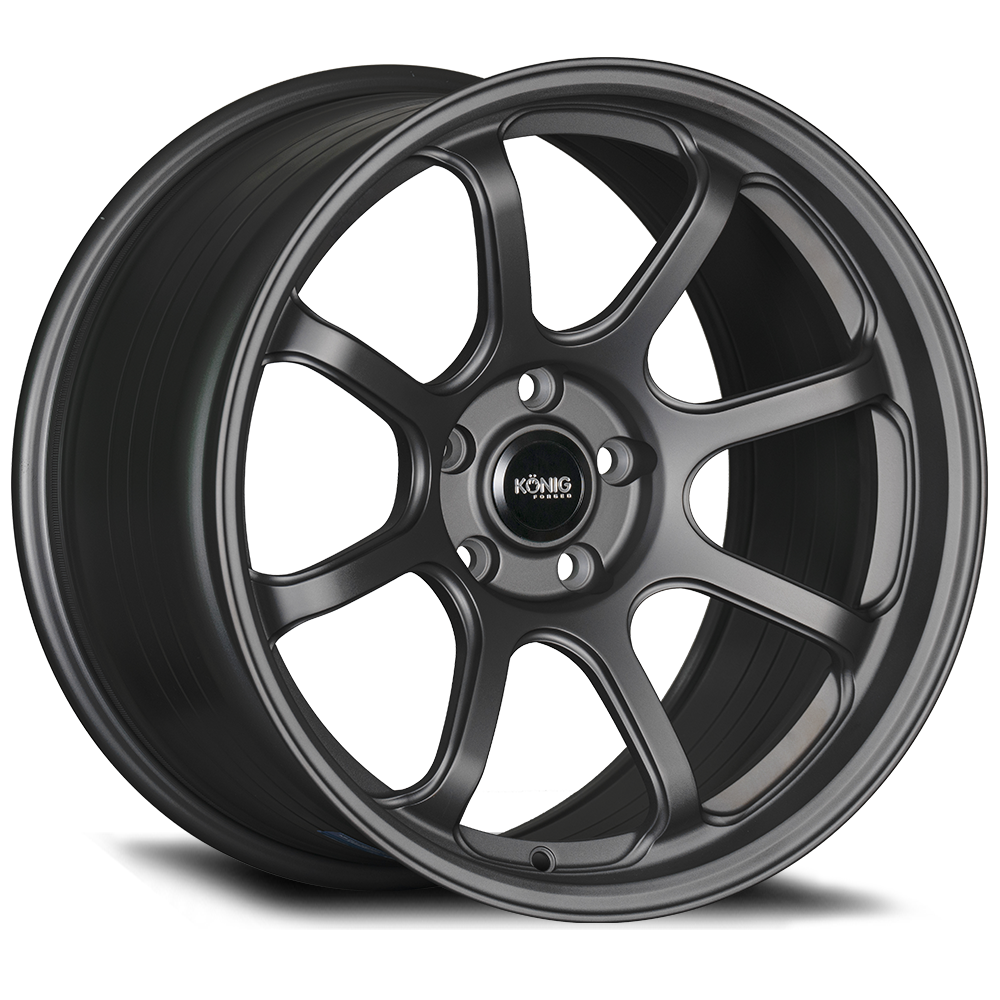

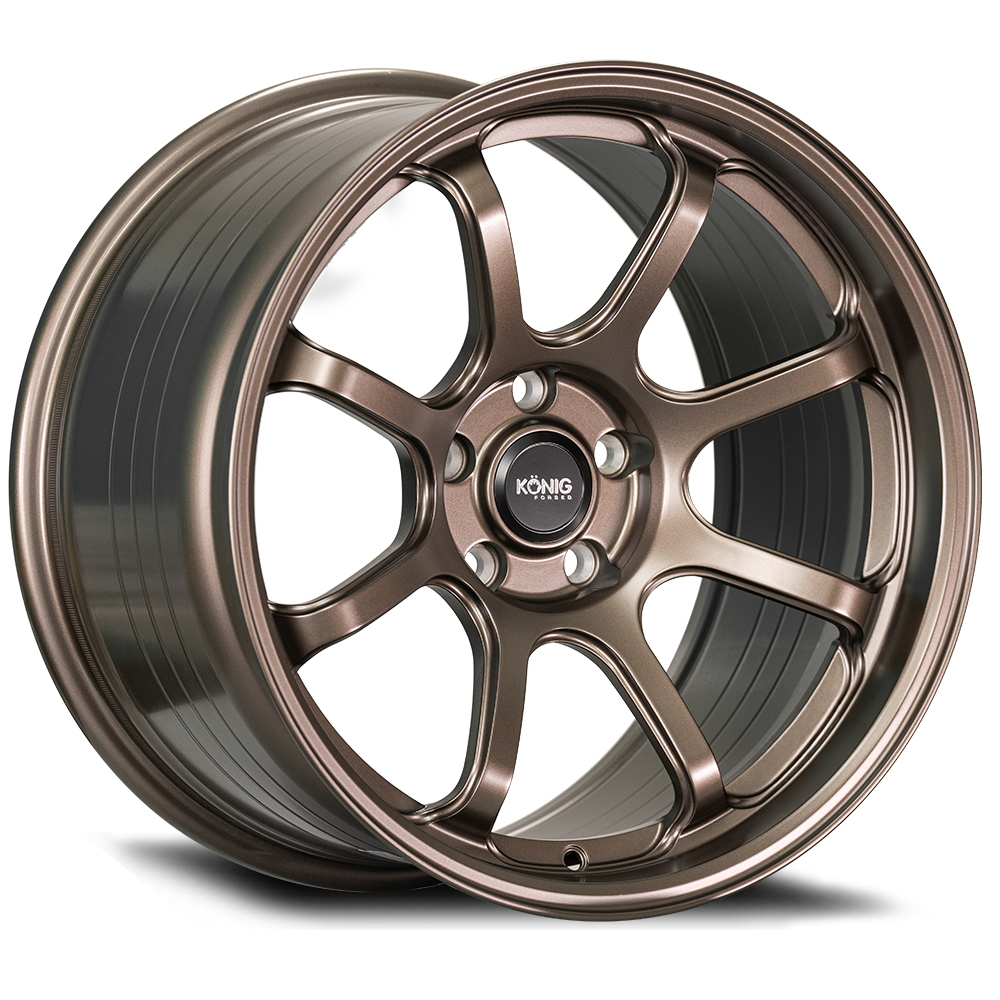

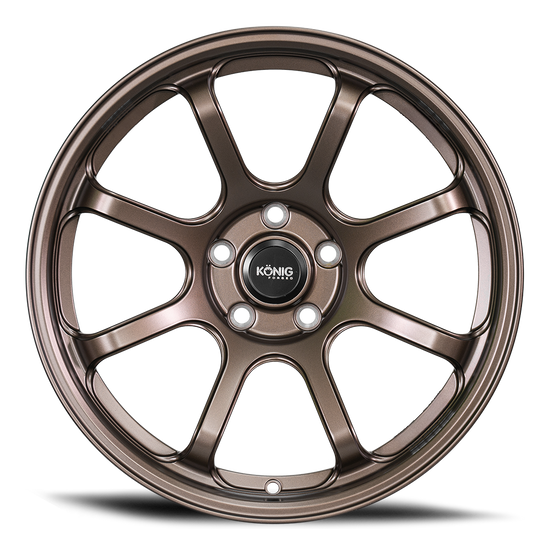

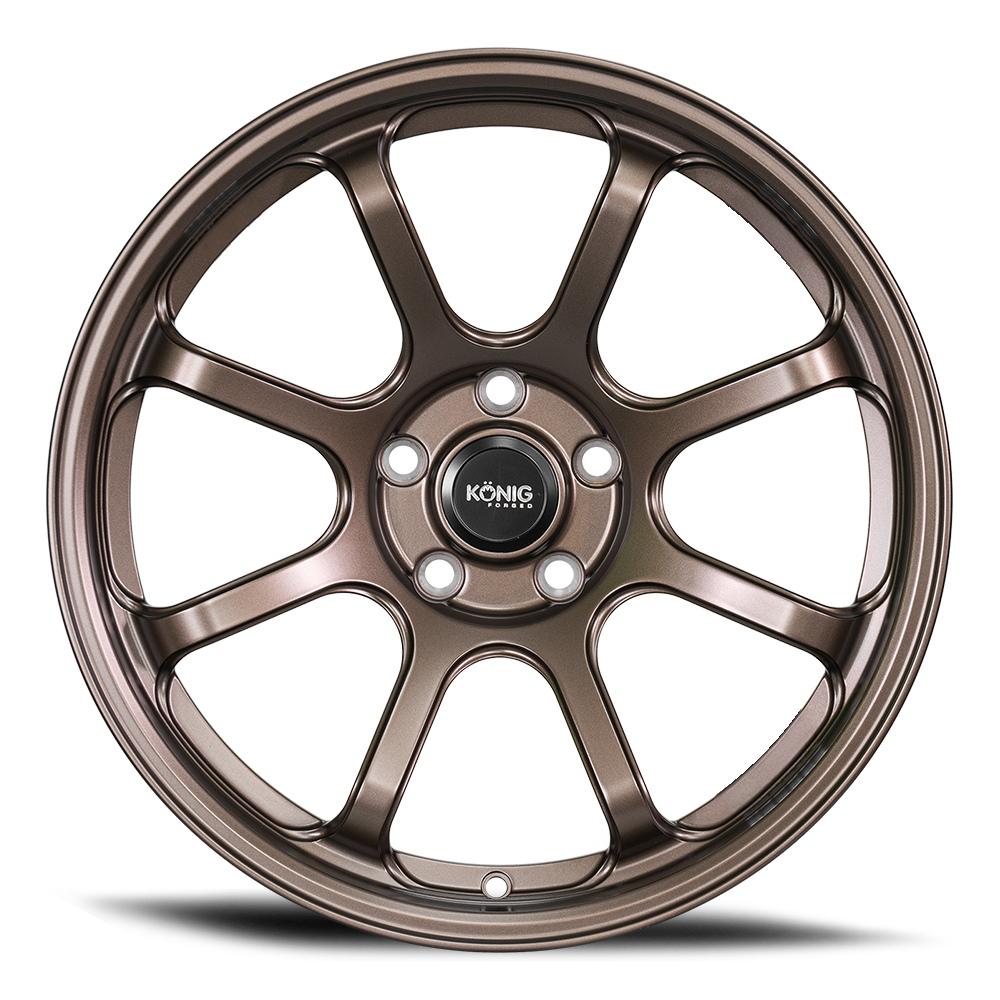

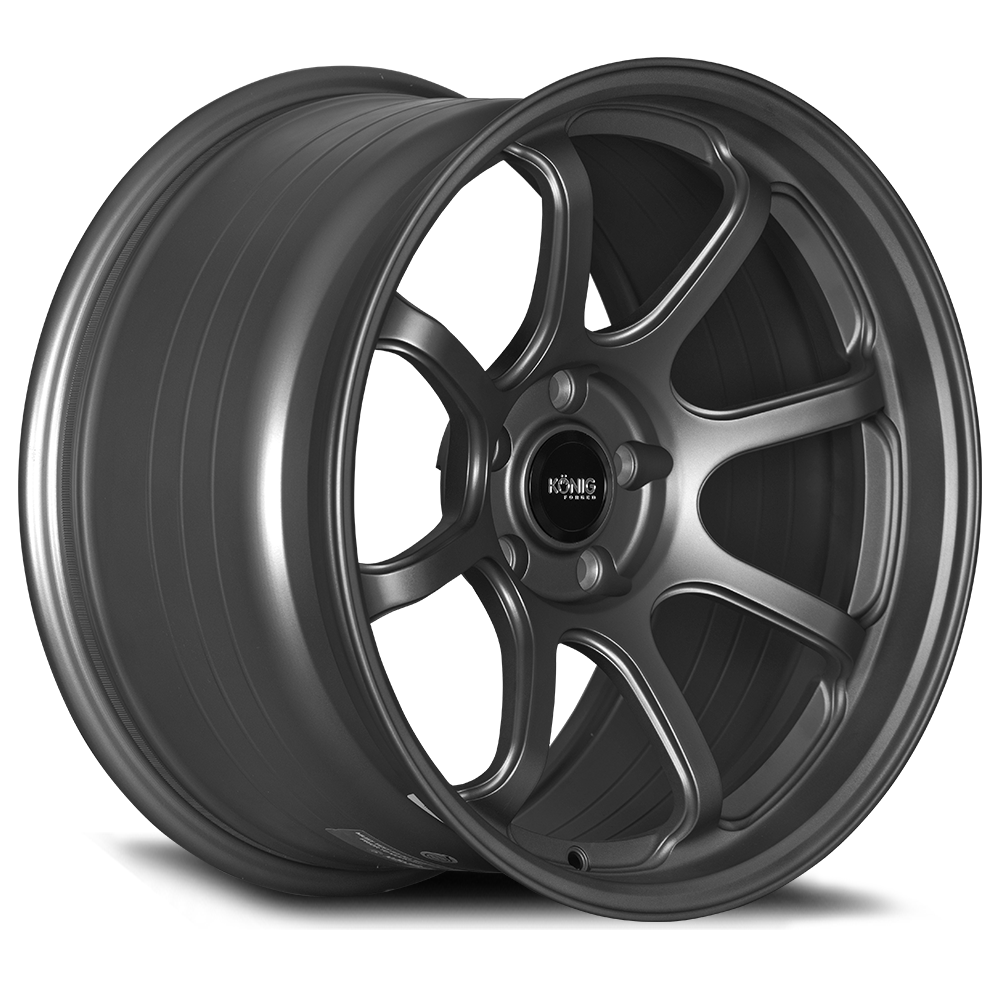

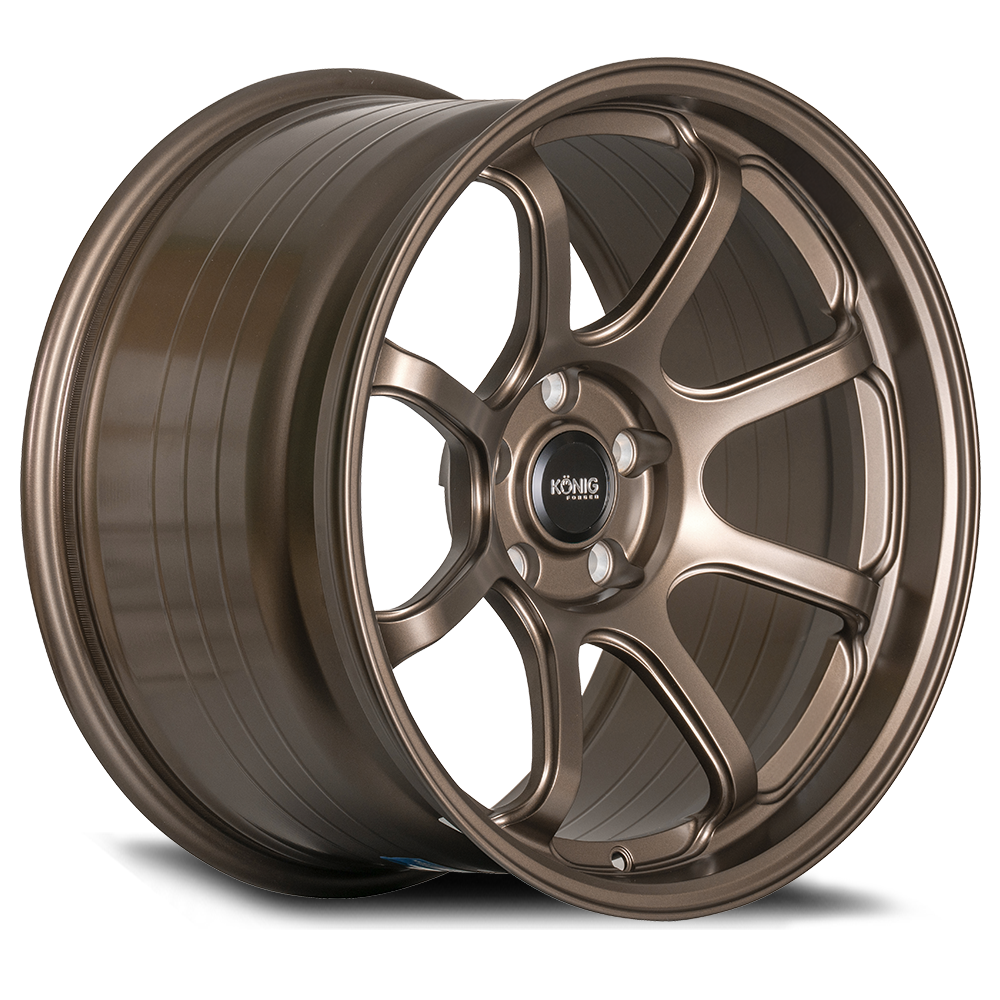

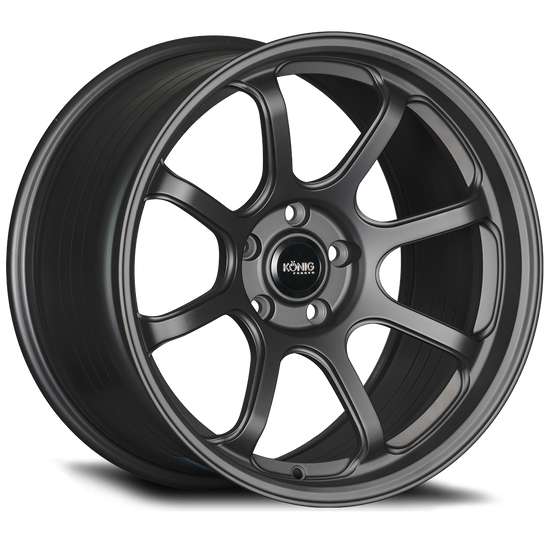

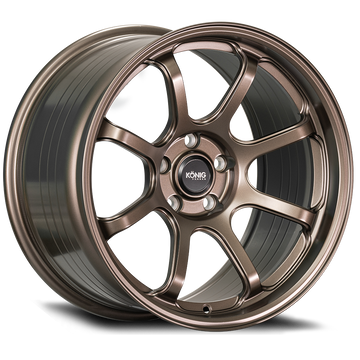

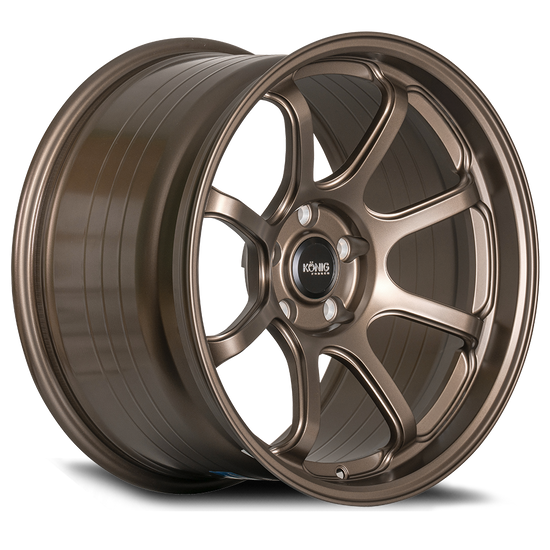

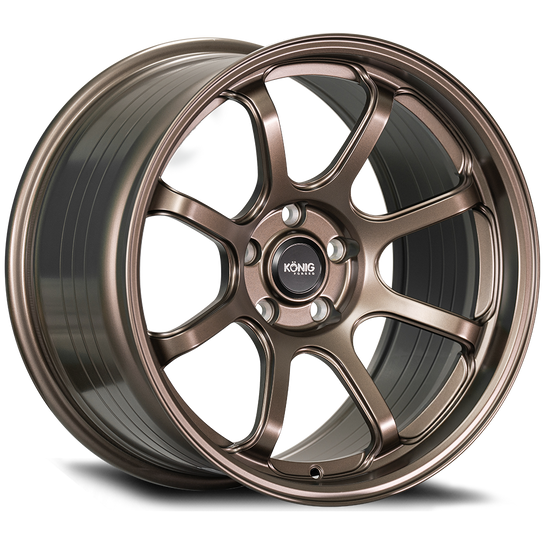

You’re already familiar with Konig’s celebrated Flow Formed wheel line and now it’s time to meet the F6SX, a fully forged wheel and yet another all-original design! The 8-spoke F6SX is packed with details and all its intimate cuts and angles are strategic and in place to extract as much weight as possible while remaining incredibly stout. These wheels deliver tensile strength that even exceeds that of our motorsport proven Flow Form wheels. Konig’s new forged offerings are the result of the brand constantly striving to bring the very best to your vehicle in a reliable, affordable package. Available in 17-and-18-inch applications in Race Bronze and Matte Grey.
-
- 4-Lug
- 5-Lug
- 6-Lug
- Lightweight
- Low Offsets
-
- FORGED
- Back Cut
- Ball Cut
- Knurled Bead Seats
- High Offsets
-
- ALL KONIG FORGED WHEELS ARE:
- FORGED TO 10K TONS
- INCREASED TENSILE STRENGTH
- LIGHTER WEIGHTS / LOWER UNSPRUNG WEIGHT
- KNURLED BEAD SEATS
- HIGHER TOLERANCE OF RESISTANCE AGAINST FATIGUE
- LIMITED LIFETIME WARRANTY AGAINST STRUCTURAL DEFECT...details
- PROVEN HISTORY WITH OVER 40 YEARS OF WHEEL MANUFACTURING DEVELOPMENT
F6X Features:
When developing the forged F6SX, we wanted every part number to have its own unique profile with the absolute most concave possible for the most dramatic look. Unlike mass produced wheels that often use profiles that share bolt patterns based on their width and offset being similar, our forged line maximizes caliper clearance and achieves the most concave profile possible and extensive research was done based on factory and aftermarket big brake kits to ensure clearance. So that you always know what your exact profile wheel will look like even before you purchase it, we have 3D rendered every part number we develop for you to view: Click Here
KONIG PART# | SIZE | PCD | OFFSET (MM) | FINISH | CENTER BORE | MANUFACTURER TYPE | LOAD RATING | NET WEIGHT (LB) |
---|---|---|---|---|---|---|---|---|
F6SX97100458 | 17X9 | 4X100 | 45 | RACE BRONZE | 73.1 | FORGED | 1213 | |
F6SX9710045G | 17X9 | 4X100 | 45 | SATIN GREY | 73.1 | FORGED | 1213 | |
F6SX88512428 | 18X8.5 | 5X112 | 42 | RACE BRONZE | 66.56 | FORGED | 1543 | |
F6SX8851242G | 18X8.5 | 5X112 | 42 | SATIN GREY | 66.56 | FORGED | 1543 | |
F6SXN8512308 | 18X9.5 | 5X112 | 30 | RACE BRONZE | 66.56 | FORGED | 1543 | |
F6SXN851230G | 18X9.5 | 5X112 | 30 | SATIN GREY | 66.56 | FORGED | 1543 | |
F6SX18512408 | 18X11 | 5X112 | 40 | RACE BRONZE | 66.56 | FORGED | 1598 | |
F6SX1851240G | 18X11 | 5X112 | 40 | SATIN GREY | 66.56 | FORGED | 1598 | |
F6SX87514408 | 17X8 | 5X114.3 | 40 | RACE BRONZE | 73.1 | FORGED | 1521 | |
F6SX8751440G | 17X8 | 5X114.3 | 40 | SATIN GREY | 73.1 | FORGED | 1521 | |
F6SX97514438 | 17X9 | 5X114.3 | 43 | RACE BRONZE | 73.1 | FORGED | 1521 | |
F6SX9751443G | 17X9 | 5X114.3 | 43 | SATIN GREY | 73.1 | FORGED | 1521 | |
F6SX07514458 | 17X10 | 5X114.3 | 45 | RACE BRONZE | 73.1 | FORGED | 1543 | |
F6SX0751445G | 17X10 | 5X114.3 | 45 | SATIN GREY | 73.1 | FORGED | 1543 | |
F6SX88514358 | 18X8.5 | 5X114.3 | 35 | RACE BRONZE | 73.1 | FORGED | 1543 | |
F6SX8851435G | 18X8.5 | 5X114.3 | 35 | SATIN GREY | 73.1 | FORGED | 1543 | |
F6SX88514458 | 18X8.5 | 5X114.3 | 45 | RACE BRONZE | 73.1 | FORGED | 1543 | |
F6SX8851445G | 18X8.5 | 5X114.3 | 45 | SATIN GREY | 73.1 | FORGED | 1543 | |
F6SXN8514258 | 18X9.5 | 5X114.3 | 25 | RACE BRONZE | 73.1 | FORGED | 1543 | |
F6SXN851425G | 18X9.5 | 5X114.3 | 25 | SATIN GREY | 73.1 | FORGED | 1543 | |
F6SXN8514358 | 18X9.5 | 5X114.3 | 35 | RACE BRONZE | 73.1 | FORGED | 1543 | |
F6SXN851435G | 18X9.5 | 5X114.3 | 35 | SATIN GREY | 73.1 | FORGED | 1543 | |
F6SXT8514258 | 18X10.5 | 5X114.3 | 25 | RACE BRONZE | 73.1 | FORGED | 1598 | |
F6SXT851425G | 18X10.5 | 5X114.3 | 25 | SATIN GREY | 73.1 | FORGED | 1598 | |
F6SX18514408 | 18X11 | 5X114.3 | 40 | RACE BRONZE | 73.1 | FORGED | 1598 | |
F6SX1851440G | 18X11 | 5X114.3 | 40 | SATIN GREY | 73.1 | FORGED | 1598 | |
F6SXN8520448 | 18X9.5 | 5X120 | 44 | RACE BRONZE | 72.56 | FORGED | 1587 | |
F6SXN852044G | 18X9.5 | 5X120 | 44 | SATIN GREY | 72.56 | FORGED | 1587 | |
F6SX08520408 | 18X10 | 5X120 | 40 | RACE BRONZE | 72.56 | FORGED | 1598 | |
F6SX0852040G | 18X10 | 5X120 | 40 | SATIN GREY | 72.56 | FORGED | 1598 | |
F6SXT8520258 | 18X10.5 | 5X120 | 25 | RACE BRONZE | 72.56 | FORGED | 1587 | |
F6SXT852025G | 18X10.5 | 5X120 | 25 | SATIN GREY | 72.56 | FORGED | 1587 |
Tour the F6SX!

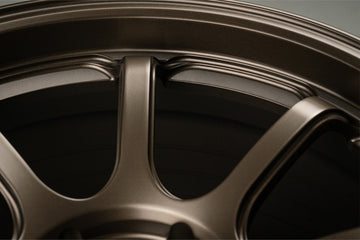

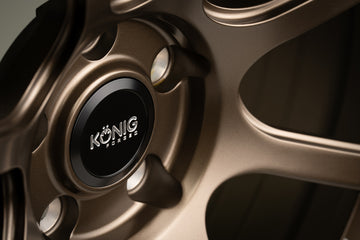

Using forged technology, the F6SX is designed for maximum performance without any signs of compromise. The deep ball cuts on each side of its eight spokes are the result of an effort to reduce weight while adding rigidity. That same mentality carries over to the wheel’s lip, where you’ll find multiple steps were formed after trimming any excess while simultaneously increasing strength. The result is a rigid design that carries the sort of details you won’t find on any other wheel on the market. The same c-channeled rear flange and knurled beading that has worked so well for Konig on its other wheel options is used here to further boost strength and stand up to the most rigorous conditions.

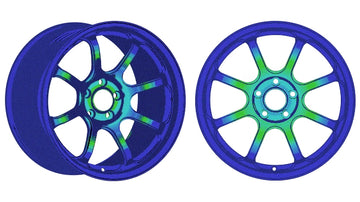

FEA Analysis
Utilizing Finite Element Analysis (FEA) and advanced engineering simulation software we push every wheel design through countless variations of impact, bending and stress, simulations to optimize wheel weight, increase strength and rigidity and reinforce high-stress areas. FEA allows us to do hundreds of minor adjustments and simulations before we even get to the physical tests.
Concavity Profile
Traditional wheel designs often struggle to accommodate larger brake setups, especially on performance-oriented vehicles. Konig Forged wheels address this by utilizing size-specific concavity profiles. By strategically dishing the center section, we create ample clearance for big brake kits without compromising the wheel's overall design. This ensures optimal braking performance without resorting to spacers, which can introduce fitment issues and affect handling. Konig Forged wheels come in a wide range of sizes, from 17x9 to 19x12.5, with PCDs ranging from 4x100 to 5x130.
Knurled Bead Seat
Konig forged wheels incorporate knurled bead seating, a design feature that enhances the tire-to-wheel interface. This textured surface optimizes grip and minimizes tire slippage during high-performance maneuvers, promoting precise handling and driver confidence.
Heritage Built. Performance Driven.
Konig isn't just about flashy looks. We've been meticulously crafting wheels for over four decades, constantly evolving our manufacturing processes to achieve the perfect balance of strength, weight, and style. When you choose Konig, you're not just getting a wheel, you're choosing a trusted partner with a proven track record of innovation and performance.
Quality Control
Our commitment to quality control goes beyond aesthetics. We utilize advanced inspection methods and rigorous testing procedures to ensure every wheel meets the highest performance standards.
Forged Wheels: Here's what you need to know...
We talk a lot about Flow Forming Technology with our popular line of Flow Formed Wheels like the Hypergram. Today, let's talk about Forged.
Wheel Profile & Concavity Images
F6SX // 17x9 ET45 Wheel Rendering - LINK
F6SX // 17x8 ET40 Wheel Rendering - LINK
F6SX // 17x9 ET43 Wheel Rendering - LINK
F6SX // 17x10 ET45 Wheel Rendering - LINK
F6SX // 18x8.5 ET35 Wheel Rendering - LINK
F6SX // 18x8.5 ET45 Wheel Rendering - LINK
F6SX // 18x9.5 ET25 Wheel Rendering - LINK
F6SX // 18x9.5 ET35 Wheel Rendering - LINK
F6SX // 18x10.5 ET25 Wheel Rendering - LINK
F6SX // 18x11 ET40 Wheel Rendering - LINK
