• Rennform

  • Specs / Sizing

  • Images / Fitment

See more Rennform pictures.

Matte Grey


Click/Tap to view finishes

    COLOR SELECTOR

  • Rennform AT A GLANCE...

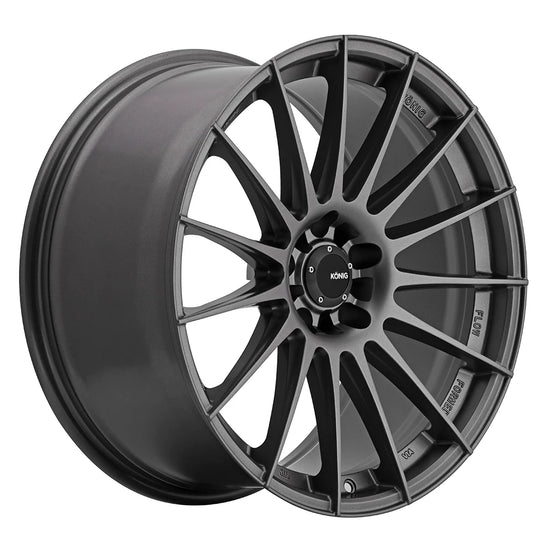

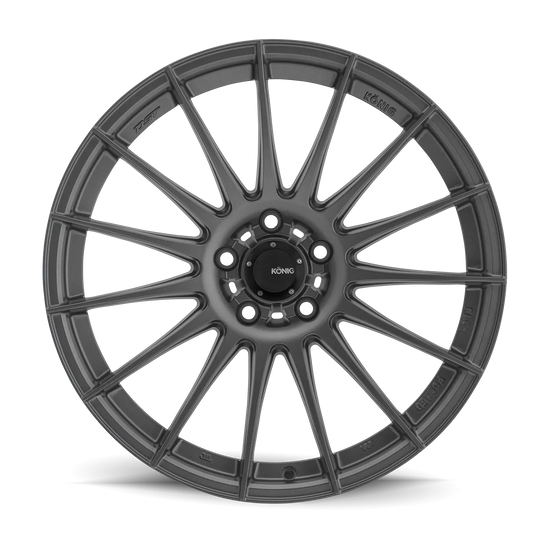

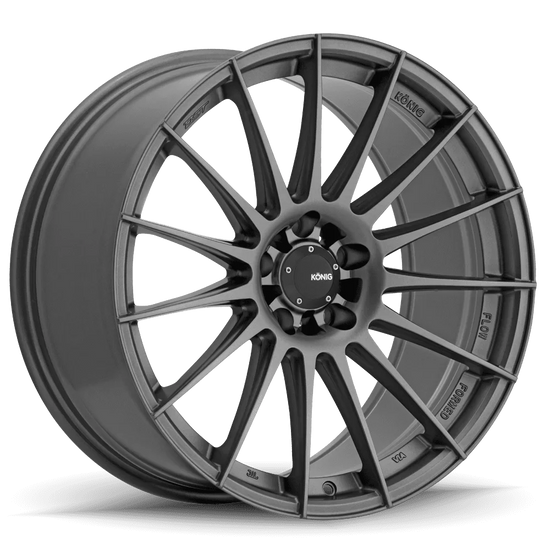

  • The Rennform is a precisely crafted 15-spoke wheel constructed with Forming Technology to ensure a lighter and stronger wheel. Finished in either Matte Grey the Rennform is available in 17×8”, 17×9”, 18×8”, 18×9”, 19×8.5” and 19×9.5” sizes. The Rennform has fitment for many popular passenger vehicles as well as European tuning vehicles alike.

  • View Specs & Sizing

  • BUY NOW!

      • Sizing:


      • 17x8
        17x9


      • 18x8
        18x9


      • 19x8.5
        19x9.5

      • Features:

        • 4-Lug
        • 5-Lug
        • 6-Lug
        • Lightweight
        • Low Offsets
        • Flow Formed
        • Back Cut
        • Ball Cut
        • Knurled Bead Seats

    • What is Flow Forming?

      Flow Forming Technology involves the application of pressure to the inner barrel of the wheel, while spinning & after it has been casted. This process shares similarities to that found in the forging process in which the aluminum molecules are compressed resulting in a lighter & stronger wheel with greater shock resistance & elongation properties.

    • The process of flow forming starts out with a precisely casted wheel that’s narrower then its final width.

    • The wheel is spun under heat while applying pressure to the inner wheel.

    • The end result has arrived to it’s desired width & is now stronger, lighter & shares properties of that of a forged wheel.

Konig Part#SizePCDOffset (mm)FinishCenter BoreConstructionNet Weight (lb)
RF8750838G17x85x10838MATTE GREY73.1FLOW FORMED17.26
RF8751245G17x85x11245MATTE GREY66.56FLOW FORMED16.95
RF8751435G17x85x114.335MATTE GREY73.1FLOW FORMED17.39
RF8751445G17x85x114.345MATTE GREY73.1FLOW FORMED16.95
RF8752035G17x85x12035MATTE GREY73.1FLOW FORMED17.39
RF8850840G18x85x10840MATTE GREY73.1FLOW FORMED18.62
RF8851040G18x85x10040MATTE GREY73.1FLOW FORMED18.62
RF8851232G18x85x11232MATTE GREY66.56FLOW FORMED18.98
RF8851245G18x85x11245MATTE GREY66.56FLOW FORMED18.4
RF8851435G18x85x114.335MATTE GREY73.1FLOW FORMED18.84
RF8851445G18x85x114.345MATTE GREY73.1FLOW FORMED18.4
RF8852035G18x85x12035MATTE GREY72.56FLOW FORMED18.84
RF8951232G19x8.55x11232MATTE GREY66.56FLOW FORMED21.07
RF8951245G19x8.55x11245MATTE GREY66.56FLOW FORMED20.5
RF8951435G19x8.55x114.335MATTE GREY73.1FLOW FORMED20.94
RF8951445G19x8.55x114.345MATTE GREY73.1FLOW FORMED20.5
RF8952035G19x8.55x12035MATTE GREY72.56FLOW FORMED20.94
RF9751423G17x95x114.325MATTE GREY73.1FLOW FORMED19.4
RF9851038G18x95x10038MATTE GREY73.1FLOW FORMED19.17
RF9851245G18x95x11245MATTE GREY66.56FLOW FORMED18.87
RF9851423G18x95x114.323MATTE GREY73.1FLOW FORMED19.84
RF9851440G18x95x114.340MATTE GREY73.1FLOW FORMED19.09
RF9852035G18x95x12035MATTE GREY72.56FLOW FORMED19.31
RF9951245G19x9.55x11245MATTE GREY66.56FLOW FORMED20.83
RF9951423G19x9.55x114.325MATTE GREY73.1FLOW FORMED21.71
RF9951435G19x9.55x114.335MATTE GREY73.1FLOW FORMED21.27
RF9952035G19x9.55x12035MATTE GREY72.56FLOW FORMED21.27
** Weights are approximates and may vary. **
*** A Profile = Less concave, more caliper clearance. / B Profile = More concave, less caliper clearance (mostly used on rear). **
**** Sizes without a letter are A Profiles**
