• Hexaform

  • Specs / Sizing

  • Images / Fitment

See more Hexaform pictures.

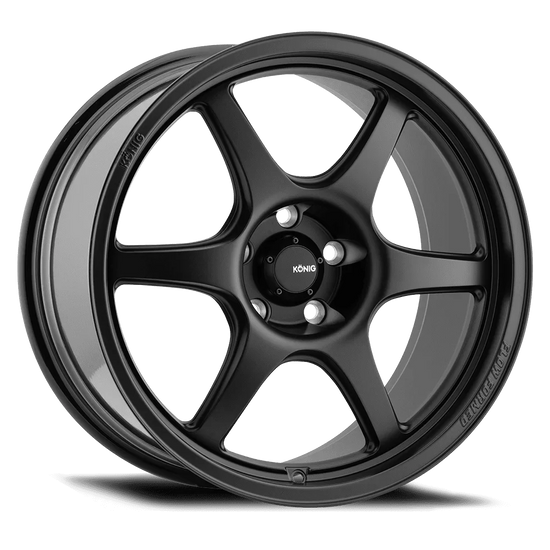

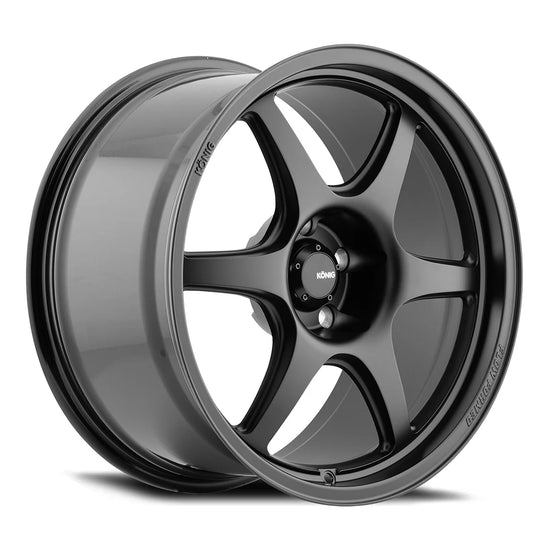

Matte Black

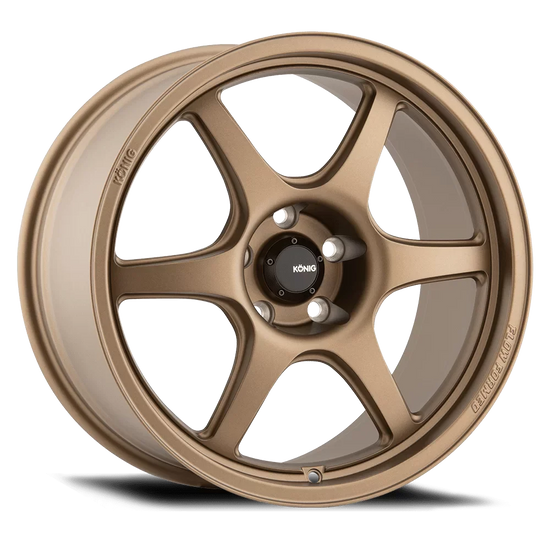

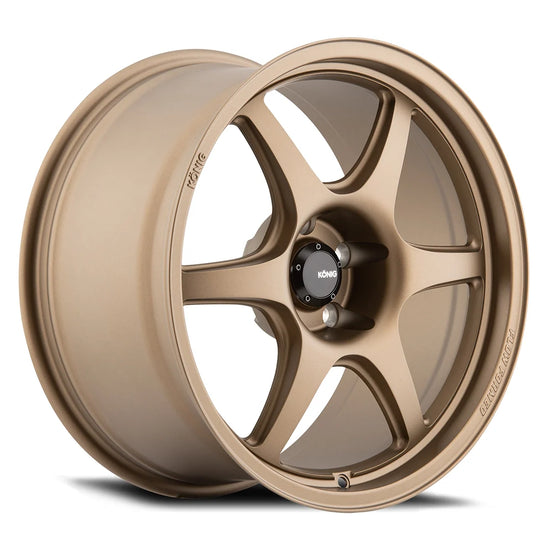

Matte Bronze

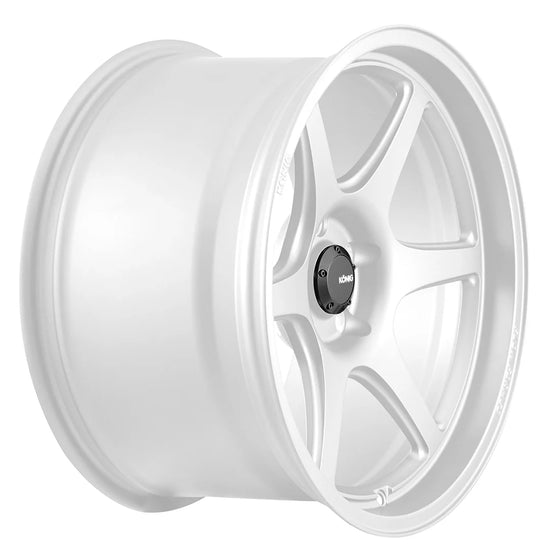

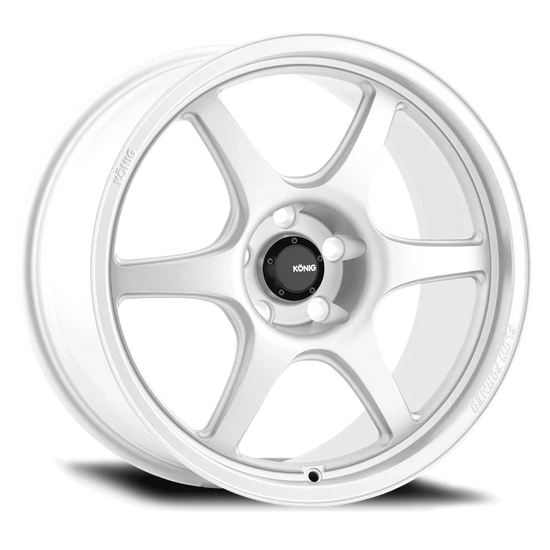

Gloss White


Click/Tap to view finishes

    COLOR SELECTOR

  • Hexaform AT A GLANCE...

  • The Hexaform is a 6-spoke design built with flow-forming technology. TWO spoke profiles are available (A & B). Shown is A profile. Available in a NEW! Gloss White, Matte Bronze and Matte Black finishes! We’ve integrated feedback from our motorsport teams, racers and drivers into both of our new designs this year. We’ve pushed the face out and allowed for as much brake caliper protrusion as well as overall brake diameter near the drop center. This provides excellent caliper clearance for big brake car and aftermarket big brake kits.

  • View Specs & Sizing

  • BUY NOW!

      • Sizing:


      • 15x7.5
        15x8
        15x9


      • 17x8
        17x9
        17x9.5


      • 18x8.5
        18x9
        18x9.5
        18x10B
        18x10.5B

      • Features:

        • 4-Lug
        • 5-Lug
        • 6-Lug
        • Lightweight
        • Low Offsets
        • Flow Formed
        • Back Cut
        • Ball Cut
        • Knurled Bead Seats

    • What is Flow Forming?

      Flow Forming Technology involves the application of pressure to the inner barrel of the wheel, while spinning & after it has been casted. This process shares similarities to that found in the forging process in which the aluminum molecules are compressed resulting in a lighter & stronger wheel with greater shock resistance & elongation properties.

    • The process of flow forming starts out with a precisely casted wheel that’s narrower then its final width.

    • The wheel is spun under heat while applying pressure to the inner wheel.

    • The end result has arrived to it’s desired width & is now stronger, lighter & shares properties of that of a forged wheel.

    • During the manufacturing process, a casted wheel, which has been designed to have a separation between the center portion of the wheel and the spoke, is precisely machined with a special tool from the backside of the wheel. This allows that area behind the face of the wheel and spokes to have a specialized machining effect. Some of these effects include a smooth area, a machined area and even a recess in which a stripe can be painted into.

    Konig Part#SizePCDOffset (mm)FinishCenter BoreConstructionMax Load (lbs)Net Weight (lb) - PROJECTIONNOTES
    HF7510035515x7.54X10035MATTE BLACK73.1FLOW FORMED110011.68
    HF7510035815x7.54X10035MATTE BRONZE73.1FLOW FORMED110011.68
    HF7510035W15x7.54X10035WHITE73.1FLOW FORMED110011.68NEW
    HF8510025515x84X10025MATTE BLACK73.1FLOW FORMED121312.9
    HF8510025815x84X10025MATTE BRONZE73.1FLOW FORMED121312.9
    HF8510025W15x84X10025WHITE73.1FLOW FORMED121312.9NEW
    HF9510035515x94x10035MATTE BLACK73.1FLOW FORMED121313.35
    HF9510035815x94x10035MATTE BRONZE73.1FLOW FORMED121313.35
    HF8710045517X84X10045MATTE BLACK73.1FLOW FORMED126717.2
    HF8710045817X84X10045MATTE BRONZE73.1FLOW FORMED126717.2
    HF8710840517x84x10840MATTE BLACK73.1FLOW FORMED152117.2
    HF8710840817x84x10840MATTE BRONZE73.1FLOW FORMED152117.2
    HF8710840W17X84x10840WHITE73.1FLOW FORMED152117.2NEW
    HF8751438W17X85x114.338WHITE73.1FLOW FORMED152117.2NEW
    HF8751040517X85X10040MATTE BLACK73.1FLOW FORMED154317.2
    HF8751040817X85X10040MATTE BRONZE73.1FLOW FORMED154317.2
    HF8751240517X85x11240MATTE BLACK66.6FLOW FORMED154317.2
    HF8751240817X85x11240MATTE BRONZE66.6FLOW FORMED154317.2
    HF8751438517X85x114.338MATTE BLACK73.1FLOW FORMED154317.2
    HF8751438817X85x114.338MATTE BRONZE73.1FLOW FORMED154317.2
    HF9710045517X94X10045MATTE BLACK73.1FLOW FORMED132218.52
    HF9710045817X94X10045MATTE BRONZE73.1FLOW FORMED132218.52
    HF9751040517x95x10040MATTE BLACK73.1FLOW FORMED154318.52
    HF9751040817x95x10040MATTE BRONZE73.1FLOW FORMED154318.52
    HFN751420517x9.55x114.320MATTE BLACK73.1FLOW FORMED154319.4
    HFN751420817x9.55x114.320MATTE BRONZE73.1FLOW FORMED154319.4
    HFN751438517x9.55x114.338MATTE BLACK73.1FLOW FORMED154319.4
    HFN751438817x9.55x114.338MATTE BRONZE73.1FLOW FORMED154319.4
    HF8850843W18x8.55x10843WHITE73.1FLOW FORMED152119.44NEW
    HF8850843518X8.55x10843MATTE BLACK73.1FLOW FORMED154319.01
    HF8850843818X8.55x10843MATTE BRONZE73.1FLOW FORMED154319.01
    HF8851040518X8.55X10040MATTE BLACK73.1FLOW FORMED154319.12
    HF8851040818X8.55X10040MATTE BRONZE73.1FLOW FORMED154319.12
    HF8851243W18x8.55x11243WHITE73.1FLOW FORMED152119.44NEW
    HF8851243518X8.55x11243MATTE BLACK66.6FLOW FORMED154319.01
    HF8851243818X8.55x11243MATTE BRONZE66.6FLOW FORMED154319.01
    HF8851443W18x8.55x114.343WHITE73.1FLOW FORMED152119.44NEW
    HF8851435518X8.55x114.335MATTE BLACK73.1FLOW FORMED154319.4
    HF8851435818X8.55x114.335MATTE BRONZE73.1FLOW FORMED154319.4
    HF8851443518X8.55x114.343MATTE BLACK73.1FLOW FORMED154319.4
    HF8851443818X8.55x114.343MATTE BRONZE73.1FLOW FORMED154319.4
    HF8852035518X8.55x12035MATTE BLACK72.6FLOW FORMED154319.4
    HF8852035818X8.55x12035MATTE BRONZE72.6FLOW FORMED154319.4
    HF8852043518X8.55x12043MATTE BLACK72.6FLOW FORMED154319.01
    HF9852031518x9A5x12031MATTE BLACK72.6FLOW FORMED154320.39
    HF9852031818x9A5x12031MATTE BRONZE72.6FLOW FORMED154320.39
    HFN851425518x9.5A5x114.325MATTE BLACK73.1FLOW FORMED154320.41
    HFN851425818x9.5A5x114.325MATTE BRONZE73.1FLOW FORMED154320.41
    HF9851425W18x9.55x114.325WHITE73.1FLOW FORMED152120.41NEW
    HF9851435W18x9.55x114.335WHITE73.1FLOW FORMED152120.41NEW
    HFN851435518x9.5A5x114.335MATTE BLACK73.1FLOW FORMED154319.97
    HFN851435818x9.5A5x114.335MATTE BRONZE73.1FLOW FORMED154319.97
    HFN852035518x9.5A5x12035MATTE BLACK72.6FLOW FORMED154319.97
    HFN852035818x9.5A5x12035MATTE BRONZE72.6FLOW FORMED154319.97
    HF0852033518x10B5x12033MATTE BLACK72.6FLOW FORMED154319.38
    HF0852033818x10B5x12033MATTE BRONZE72.6FLOW FORMED154319.38
    HF0851418518x10.5B5x114.318MATTE BLACK73.1FLOW FORMED154319.68
    HF0851418818x10.5B5x114.318MATTE BRONZE73.1FLOW FORMED154319.68
    HF0851418W18x10.5B5x114.318WHITE73.1FLOW FORMED154319.68NEW
    HFT0852033818x10.5B5x12033MATTE BRONZE72.6FLOW FORMED1543TBANEW
    ** Weights are approximates and may vary. **
    *** A Profile = Less concave, more caliper clearance. / B Profile = More concave, less caliper clearance (mostly used on rear). **
    **** Sizes without a letter are A Profiles**
