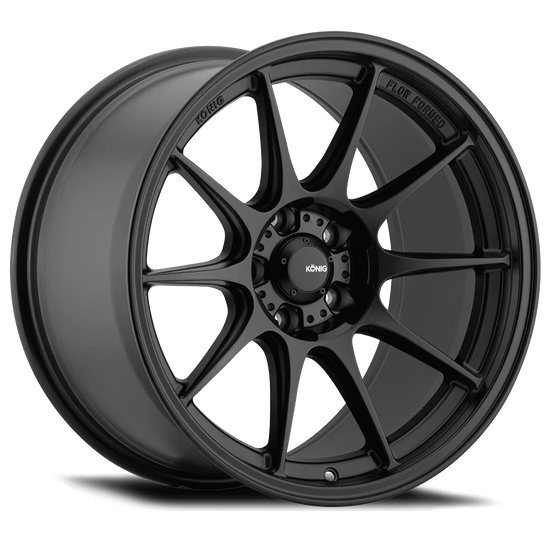

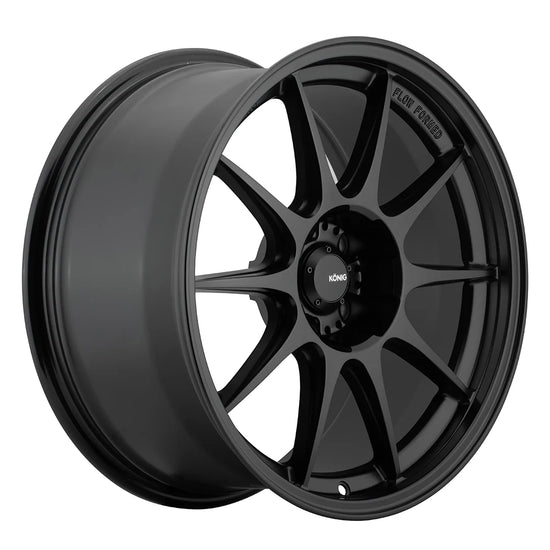

Semi Matte Black

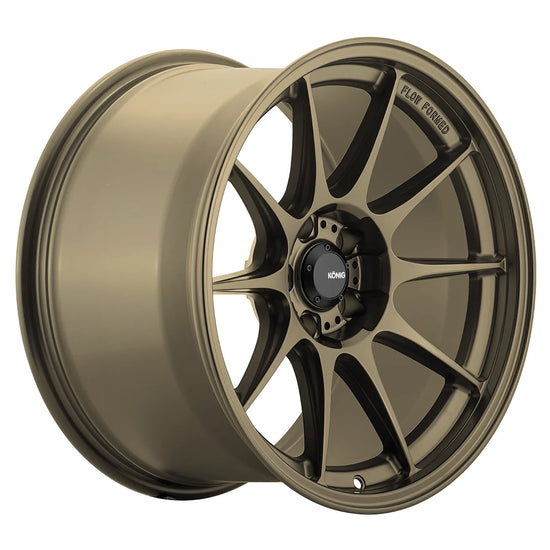

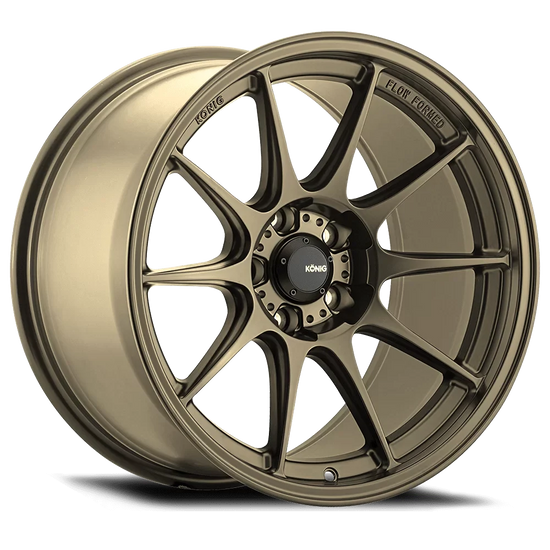

Gloss Bronze


Click/Tap to view finishes

    COLOR SELECTOR

  • Dekagram AT A GLANCE...

  • The Dekagram is a lightweight, 10-spoke design that is developed with flow forming technology that offers benefits for both track and street use. Motorsport inspired, the Dekagram’s spoke profile design lends to efficient brake cooling as well as exceptional brake caliper clearance. With widths up to 10.5″ wide, toughening up the stance on many popular vehicles isn’t a problem. With any wheel Konig develops with Flow Forming Technology, the end result is stronger, lighter and offers greater elongation and shock resistance than a traditional cast design. The Dekagram is offered in 15×7.5″, 15×8″, 15×10″, 16×8″, 17×8″, 17×9″, 18×8.5″, 18×9.5″, 18×10.5″, 19×8.5, 19×9.5 and 19×10.5 and finished in Semi Matte Black and Gloss Bronze (for select part numbers).

  • View Specs & Sizing

  • BUY NOW!

      • Sizing:


      • 15x7.5
        15x8
        15x9
        15x10


      • 16x8


      • 17x8
        17x9


      • 18x8.5
        18x9.5A
        18x9.5B
        18x10.5


      • 19x8.5
        19x9.5A
        19x9.5B
        19x10.5B

      • Features:

        • 4-Lug
        • 5-Lug
        • 6-Lug
        • Lightweight
        • Low Offsets
        • Flow Formed
        • Back Cut
        • Ball Cut
        • Knurled Bead Seats

    • What is Flow Forming?

      Flow Forming Technology involves the application of pressure to the inner barrel of the wheel, while spinning & after it has been casted. This process shares similarities to that found in the forging process in which the aluminum molecules are compressed resulting in a lighter & stronger wheel with greater shock resistance & elongation properties.

    • The process of flow forming starts out with a precisely casted wheel that’s narrower then its final width.

    • The wheel is spun under heat while applying pressure to the inner wheel.

    • The end result has arrived to it’s desired width & is now stronger, lighter & shares properties of that of a forged wheel.

Konig Part#SizePCDOffset (mm)FinishCenter BoreConstructionNet Weight (lb)Notes
DK7510035515_7.54_10035SEMI-MATTE BLACK73.1FLOW FORMEDprojected 11.75 lbs
DK7510035815_7.54_10035GLOSS BRONZE73.1FLOW FORMEDprojected 11.75 lbs
DK8510025515_84_10025SEMI-MATTE BLACK73.1FLOW FORMED12.53 lbs
DK8510025815_84_10025GLOSS BRONZE73.1FLOW FORMED12.53 lbs
DK9510035515_94_10035SEMI-MATTE BLACK73.1FLOW FORMED -
DK9510035815_94_10035GLOSS BRONZE73.1FLOW FORMED -
DK05100255 15_104_10025SEMI-MATTE BLACK73.1 FLOW FORMED 14.42 lbsExclusively Through Goodwin Racing
DK05100258 15_104_10025GLOSS BRONZE73.1 FLOW FORMED 14.42 lbsExclusively Through Goodwin Racing
DK0510025G 15_104_10025MATTE GREY73.1 FLOW FORMED 14.42 lbsExclusively Through Goodwin Racing
DK8610035816_84_10035GLOSS BRONZE73.1FLOW FORMED14.75 lbs
DK8610035516_84_10035SEMI-MATTE BLACK73.1FLOW FORMED14.75 lbs
DK8610840516_84_10840SEMI-MATTE BLACK73.1FLOW FORMEDprojected 14.54 lbs
DK8610840816_84_10840GLOSS BRONZE73.1FLOW FORMEDprojected 14.54 lbs
DK8710045517_84_10045SEMI-MATTE BLACK73.1FLOW FORMED16.83 lbs
DK8710045817_84_10045GLOSS BRONZE73.1FLOW FORMED16.83 lbs
DK8751040517_85_10040SEMI-MATTE BLACK73.1FLOW FORMEDprojected 16.83 lbs
DK8751040817_85_10040GLOSS BRONZE73.1FLOW FORMEDprojected 16.83 lbs
DK8751440517_85_114.340SEMI-MATTE BLACK73.1FLOW FORMEDprojected 16.83 lbs
DK8751440817_85_114.340GLOSS BRONZE73.1FLOW FORMEDprojected 16.83 lbs
DK9751040517_95_10040SEMI-MATTE BLACK73.1FLOW FORMED17.37 lbs
DK9751040817_95_10040GLOSS BRONZE73.1FLOW FORMED17.37 lbs
DK9751425517_95_114.325SEMI-MATTE BLACK73.1FLOW FORMEDprojected 18.40 lbs
DK9751425817_95_114.325GLOSS BRONZE73.1FLOW FORMEDprojected 18.40 lbs
DK9751440517_95_114.340SEMI-MATTE BLACK73.1FLOW FORMED17.3 lbs
DK8850843518_8.55_10843SEMI-MATTE BLACK73.1FLOW FORMEDprojected 18.82 lbs
DK8850843818_8.55_10843GLOSS BRONZE73.1FLOW FORMEDprojected 18.82 lbs
DK8851044518_8.55_10044SEMI-MATTE BLACK73.1FLOW FORMEDprojected 18.80 lbs
DK8851243518_8.55_11243SEMI-MATTE BLACK66.6FLOW FORMEDprojected 18.82 lbs
DK8851243818_8.55_11243GLOSS BRONZE66.6FLOW FORMEDprojected 18.82 lbs
DK8851435518_8.55_114.335SEMI-MATTE BLACK73.1FLOW FORMED18.97 lbs
DK8851435818_8.55_114.335GLOSS BRONZE73.1FLOW FORMED18.97 lbs
DK8851445518_8.55_114.345SEMI-MATTE BLACK73.1FLOW FORMEDprojected 18.77 lbs
DK8851445818_8.55_114.345GLOSS BRONZE73.1FLOW FORMEDprojected 18.77 lbs
DK8852032518_8.55_12032SEMI-MATTE BLACK72.6FLOW FORMEDprojected 19.05 lbs
DK9851425518_9.5A5X114.325SEMI-MATTE BLACK73.1FLOW FORMEDTBA
DK9851425818_9.5A5X114.325GLOSS BRONZE73.1FLOW FORMEDTBA
DK9851435518_9.5A5X114.335SEMI-MATTE BLACK73.1FLOW FORMEDTBA
DK9851435818_9.5A5X114.335GLOSS BRONZE73.1FLOW FORMEDTBA
DK9851035518_9.5B5_10035SEMI-MATTE BLACK73.1FLOW FORMEDprojected 19.81 lbs
DK9851035818_9.5B5_10035GLOSS BRONZE73.1FLOW FORMEDprojected 19.81 lbs
DK9852022518_9.5B5_12022SEMI-MATTE BLACK72.6FLOW FORMEDprojected 19.98 lbs
DK0851418518_10.5B5X114.318SEMI-MATTE BLACK73.1FLOW FORMEDprojected 21.59 lbs
DK0851418818_10.5B5X114.318GLOSS BRONZE73.1FLOW FORMEDprojected 21.59 lbs
DK8951430519_8.55_114.330SEMI-MATTE BLACK73.1FLOW FORMEDprojected 19.77 lbs
DK8951443519_8.55_114.343SEMI-MATTE BLACK73.1FLOW FORMEDprojected 19.51 lbs
DK9951425519_9.5A5_114.325SEMI-MATTE BLACK73.1FLOW FORMEDprojected 21.84 lbs
DK9951435519_9.5A5_114.335SEMI-MATTE BLACK73.1FLOW FORMED20.94 lbs
DKB951435519_9.5B5_114.335SEMI-MATTE BLACK73.1FLOW FORMED19.86 lbs
DK0951423519_10.5B5_114.323SEMI-MATTE BLACK73.1FLOW FORMED21.41 lbs

[table caption=”” width=”800″ colwidth=”20|72|50″ align=”center” colalign=”left|left|left|center|left|center|center|center”]
Konig Part#,Size,PCD,Offset (mm),Finish,Center Bore,Construction,Net Weight (lb),Notes
DK75100355,15×7.5,4×100,35,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 11.75 lbs,
DK75100358,15×7.5,4×100,35,GLOSS BRONZE,73.1,FLOW FORMED,projected 11.75 lbs,
DK85100255,15×8,4×100,25,SEMI-MATTE BLACK,73.1,FLOW FORMED,12.53 lbs,
DK85100258,15×8,4×100,25,GLOSS BRONZE,73.1,FLOW FORMED,12.53 lbs,
DK95100355,15×9,4×100,35,SEMI-MATTE BLACK,73.1,FLOW FORMED, -,
DK95100358,15×9,4×100,35,GLOSS BRONZE,73.1,FLOW FORMED, -,
DK05100255, 15×10,4×100,25,SEMI-MATTE BLACK,73.1, FLOW FORMED, 14.42 lbs, Exclusively Through Goodwin Racing
DK05100258, 15×10,4×100,25,GLOSS BRONZE,73.1, FLOW FORMED, 14.42 lbs, Exclusively Through Goodwin Racing
DK0510025G, 15×10,4×100,25,MATTE GREY,73.1, FLOW FORMED, 14.42 lbs, Exclusively Through Goodwin Racing
DK86100358,16×8,4×100,35,GLOSS BRONZE,73.1,FLOW FORMED,14.75 lbs,
DK86100355,16×8,4×100,35,SEMI-MATTE BLACK,73.1,FLOW FORMED,14.75 lbs,
DK86108405,16×8,4×108,40,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 14.54 lbs,
DK86108408,16×8,4×108,40,GLOSS BRONZE,73.1,FLOW FORMED,projected 14.54 lbs,
DK87100455,17×8,4×100,45,SEMI-MATTE BLACK,73.1,FLOW FORMED,16.83 lbs,
DK87100458,17×8,4×100,45,GLOSS BRONZE,73.1,FLOW FORMED,16.83 lbs,
DK87510405,17×8,5×100,40,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 16.83 lbs,
DK87510408,17×8,5×100,40,GLOSS BRONZE,73.1,FLOW FORMED,projected 16.83 lbs,
DK87514405,17×8,5×114.3,40,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 16.83 lbs,
DK87514408,17×8,5×114.3,40,GLOSS BRONZE,73.1,FLOW FORMED,projected 16.83 lbs,
DK97510405,17×9,5×100,40,SEMI-MATTE BLACK,73.1,FLOW FORMED,17.37 lbs,
DK97510408,17×9,5×100,40,GLOSS BRONZE,73.1,FLOW FORMED,17.37 lbs,
DK97514255,17×9,5×114.3,25,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 18.40 lbs,
DK97514258,17×9,5×114.3,25,GLOSS BRONZE,73.1,FLOW FORMED,projected 18.40 lbs,
DK97514405,17×9,5×114.3,40,SEMI-MATTE BLACK,73.1,FLOW FORMED,17.3 lbs,
DK88508435,18×8.5,5×108,43,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 18.82 lbs,
DK88508438,18×8.5,5×108,43,GLOSS BRONZE,73.1,FLOW FORMED,projected 18.82 lbs,
DK88510445,18×8.5,5×100,44,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 18.80 lbs,
DK88512435,18×8.5,5×112,43,SEMI-MATTE BLACK,66.6,FLOW FORMED,projected 18.82 lbs,
DK88512438,18×8.5,5×112,43,GLOSS BRONZE,66.6,FLOW FORMED,projected 18.82 lbs,
DK88514355,18×8.5,5×114.3,35,SEMI-MATTE BLACK,73.1,FLOW FORMED,18.97 lbs,
DK88514358,18×8.5,5×114.3,35,GLOSS BRONZE,73.1,FLOW FORMED,18.97 lbs,
DK88514455,18×8.5,5×114.3,45,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 18.77 lbs,
DK88514458,18×8.5,5×114.3,45,GLOSS BRONZE,73.1,FLOW FORMED,projected 18.77 lbs,
DK88520325,18×8.5,5×120,32,SEMI-MATTE BLACK,72.6,FLOW FORMED,projected 19.05 lbs,
DK98514255,18×9.5A,5X114.3,25,SEMI-MATTE BLACK,73.1,FLOW FORMED,TBA,
DK98514258,18×9.5A,5X114.3,25,GLOSS BRONZE,73.1,FLOW FORMED,TBA,
DK98514355,18×9.5A,5X114.3,35,SEMI-MATTE BLACK,73.1,FLOW FORMED,TBA,
DK98514358,18×9.5A,5X114.3,35,GLOSS BRONZE,73.1,FLOW FORMED,TBA,
DK98510355,18×9.5B,5×100,35,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 19.81 lbs,
DK98510358,18×9.5B,5×100,35,GLOSS BRONZE,73.1,FLOW FORMED,projected 19.81 lbs,
DK98520225,18×9.5B,5×120,22,SEMI-MATTE BLACK,72.6,FLOW FORMED,projected 19.98 lbs,
DK08514185,18×10.5B,5X114.3,18,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 21.59 lbs,
DK08514188,18×10.5B,5X114.3,18,GLOSS BRONZE,73.1,FLOW FORMED,projected 21.59 lbs,
DK89514305,19×8.5,5×114.3,30,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 19.77 lbs,
DK89514435,19×8.5,5×114.3,43,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 19.51 lbs,
DK99514255,19×9.5A,5×114.3,25,SEMI-MATTE BLACK,73.1,FLOW FORMED,projected 21.84 lbs,
DK99514355,19×9.5A,5×114.3,35,SEMI-MATTE BLACK,73.1,FLOW FORMED,20.94 lbs,
DKB9514355,19×9.5B,5×114.3,35,SEMI-MATTE BLACK,73.1,FLOW FORMED,19.86 lbs,
DK09514235,19×10.5B,5×114.3,23,SEMI-MATTE BLACK,73.1,FLOW FORMED,21.41 lbs,
[/table]

** Weights are approximates and may vary. **
*** A Profile = Less concave, more caliper clearance. / B Profile = More concave, less caliper clearance (mostly used on rear). **
**** Sizes without a letter are A Profiles**
