MRK1XR
MRK1 XR AT A GLANCE...

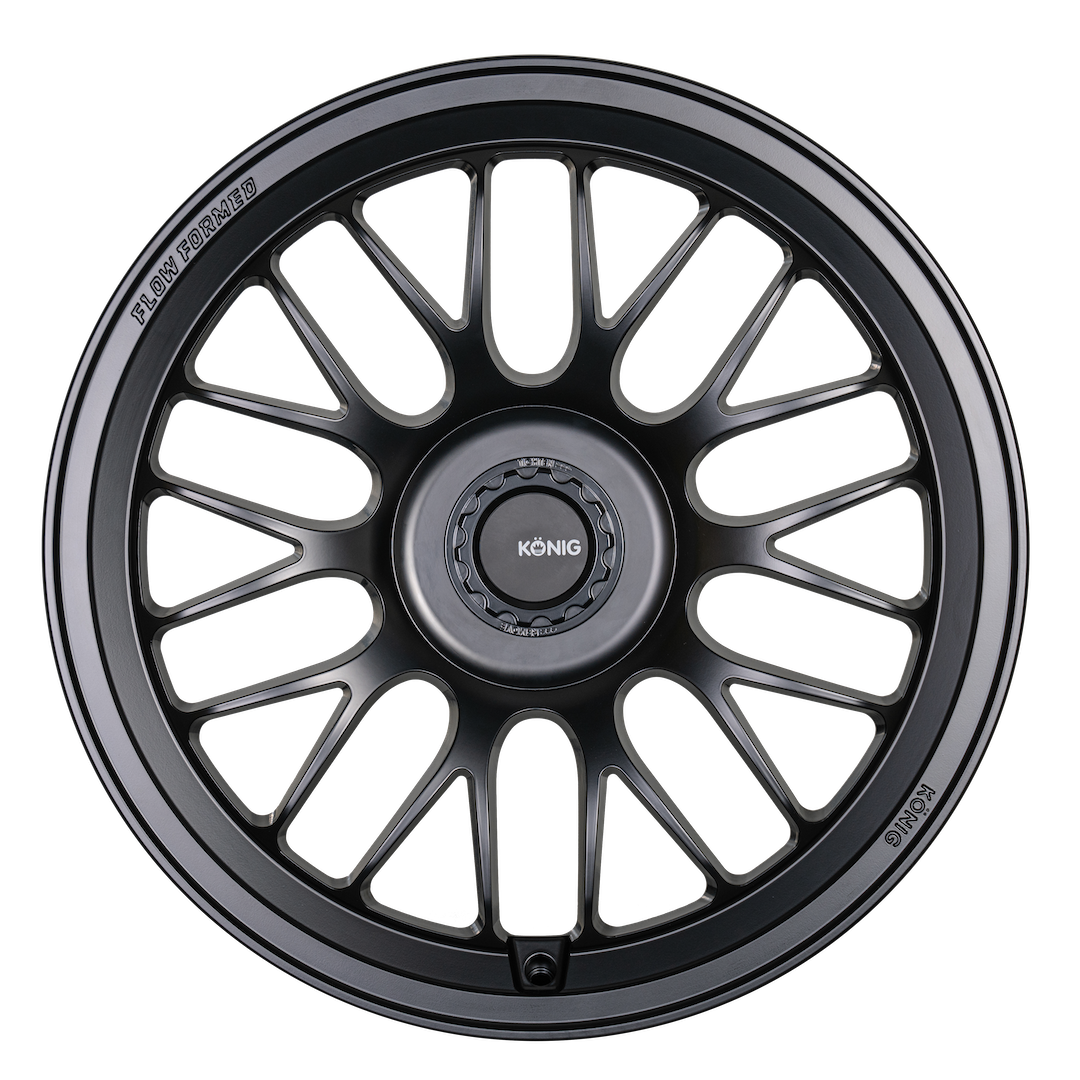

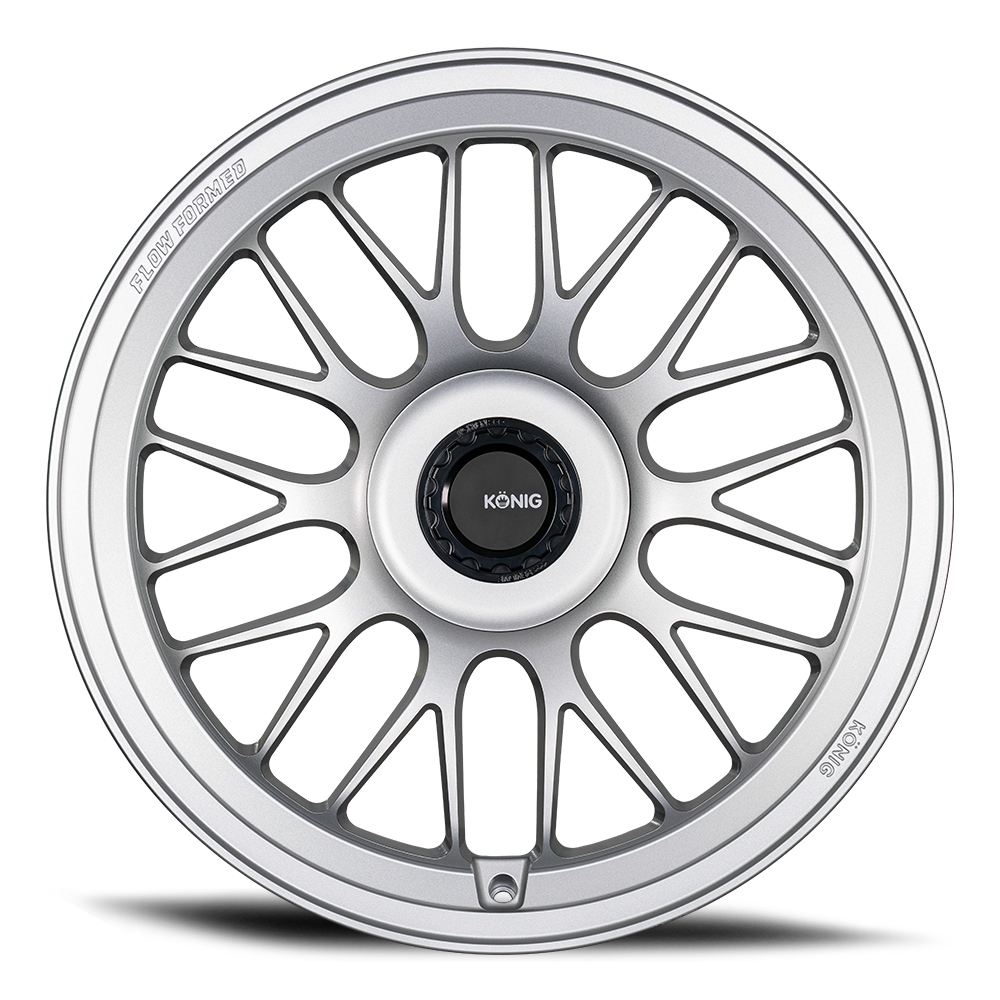

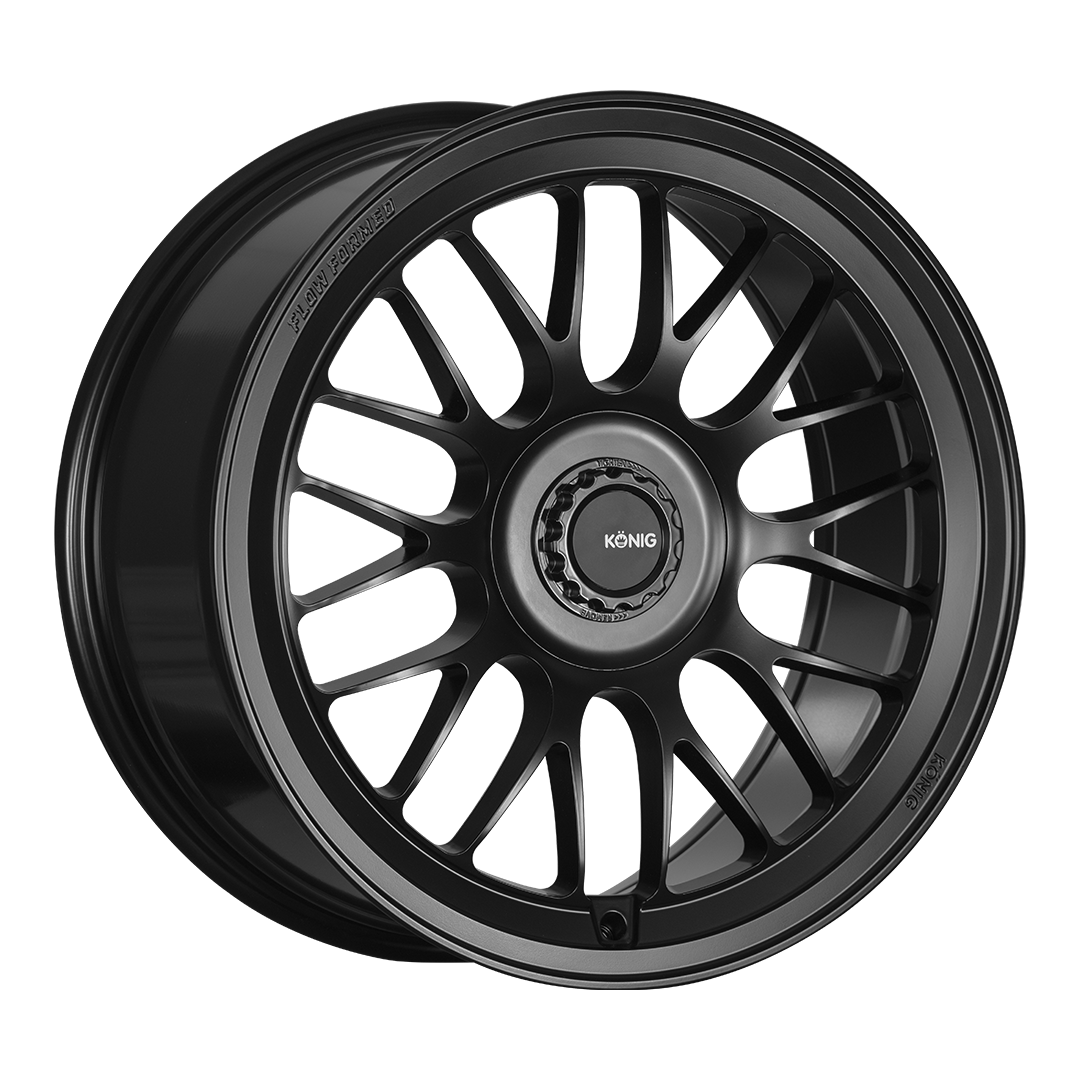

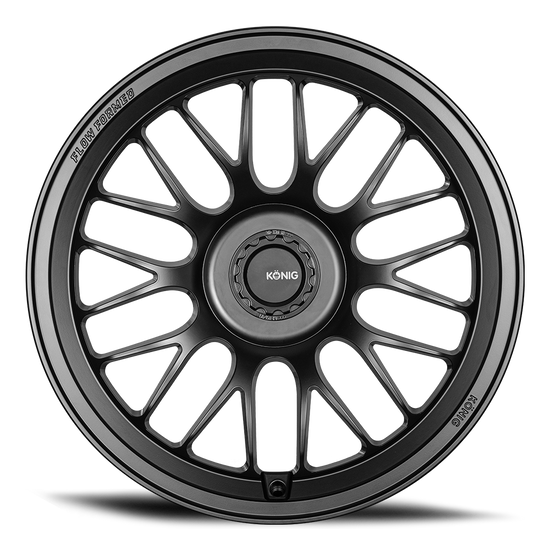

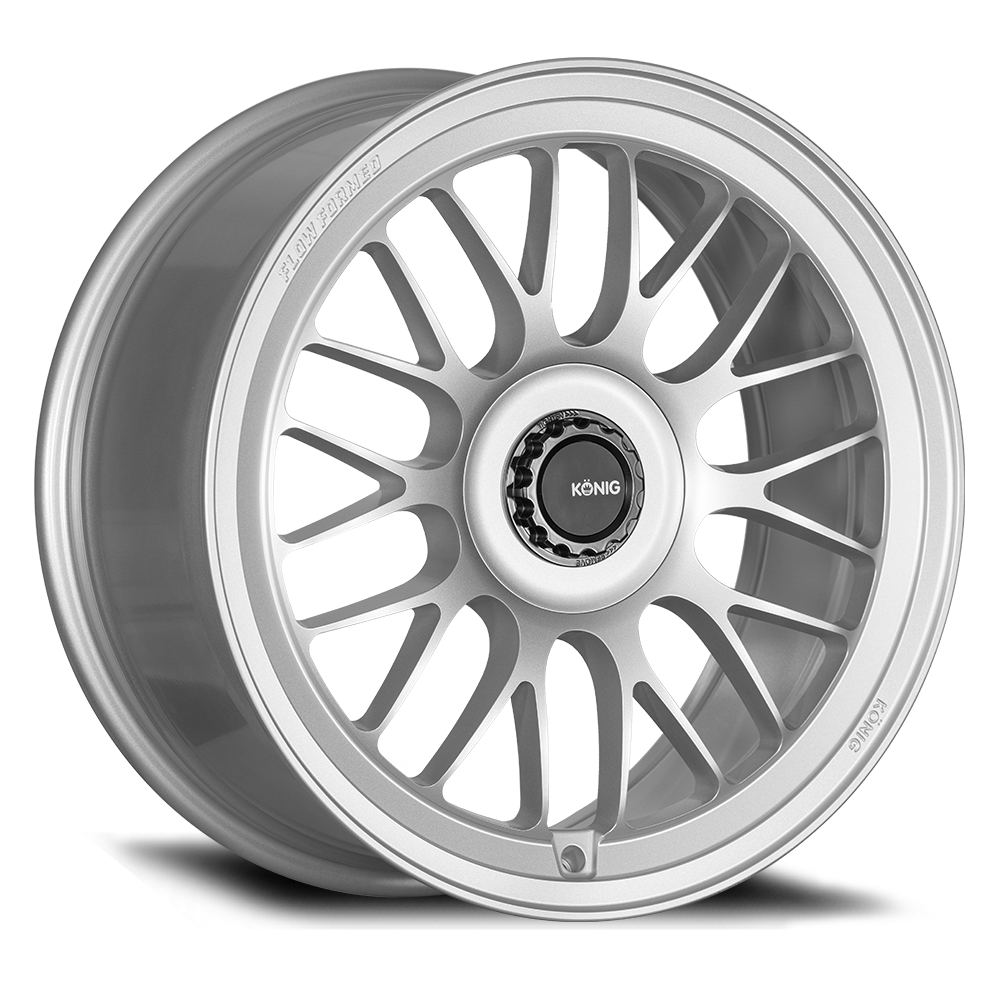

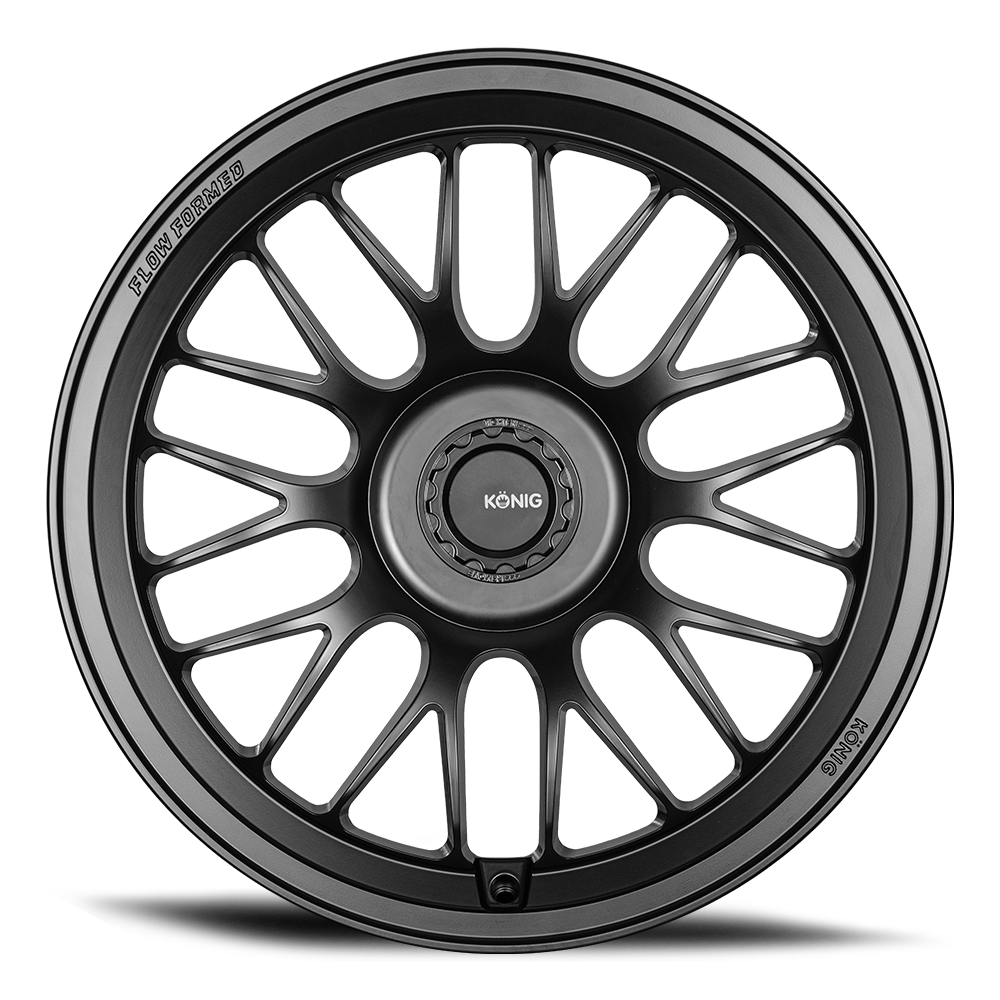

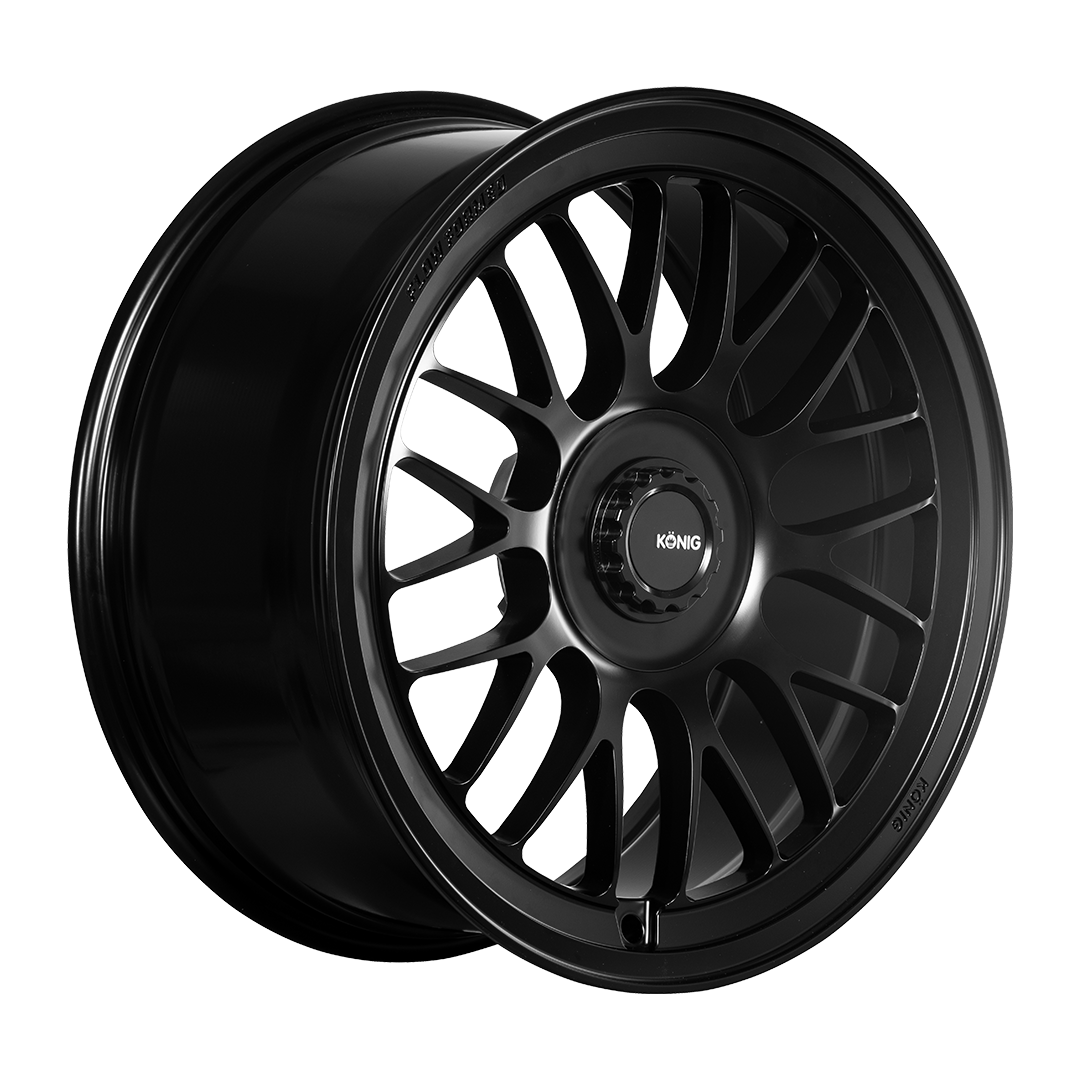

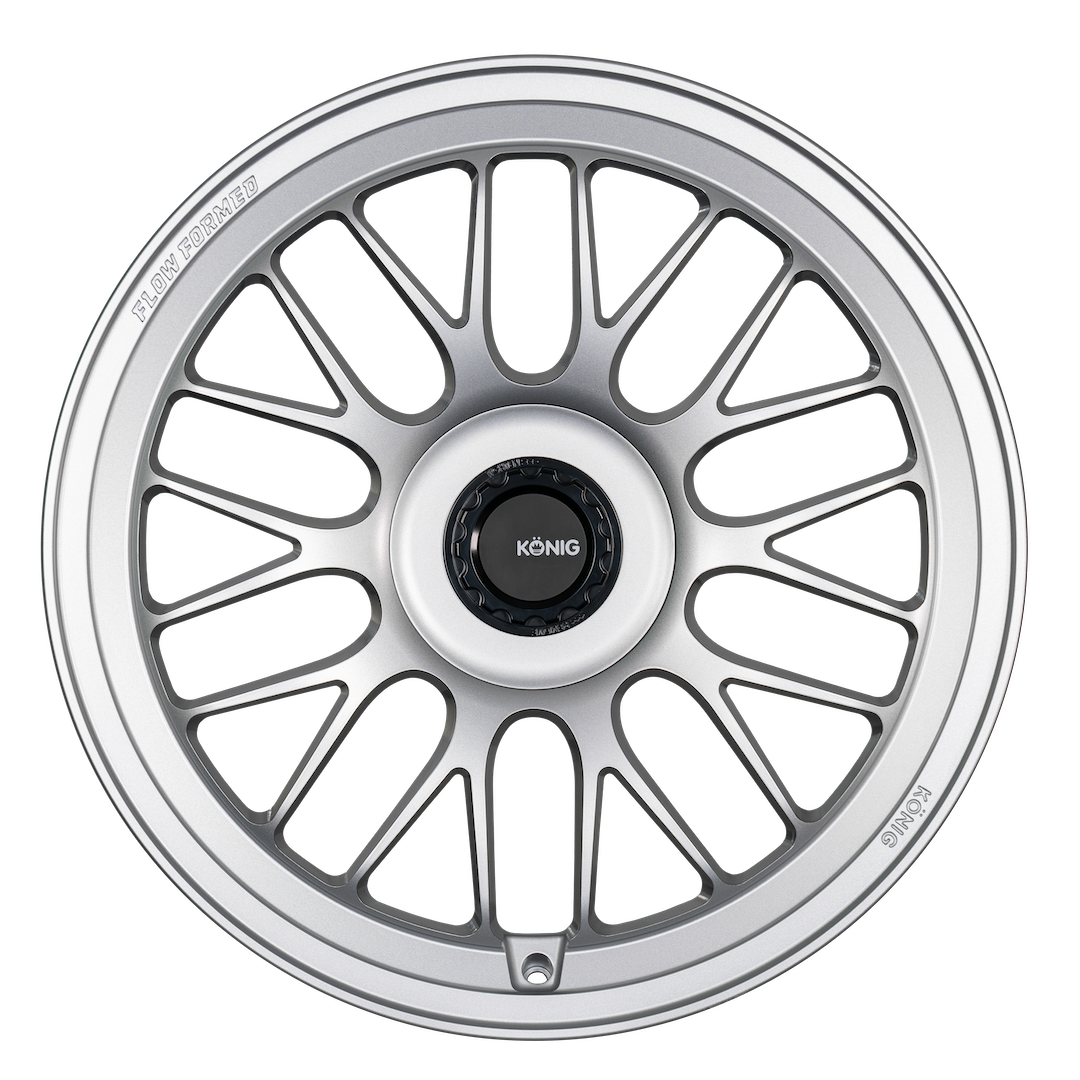

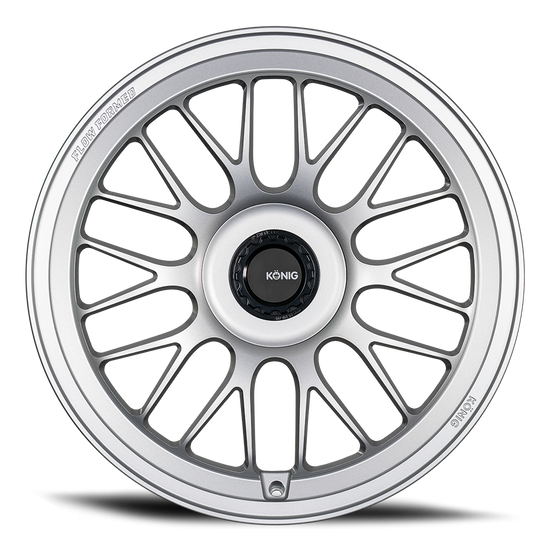

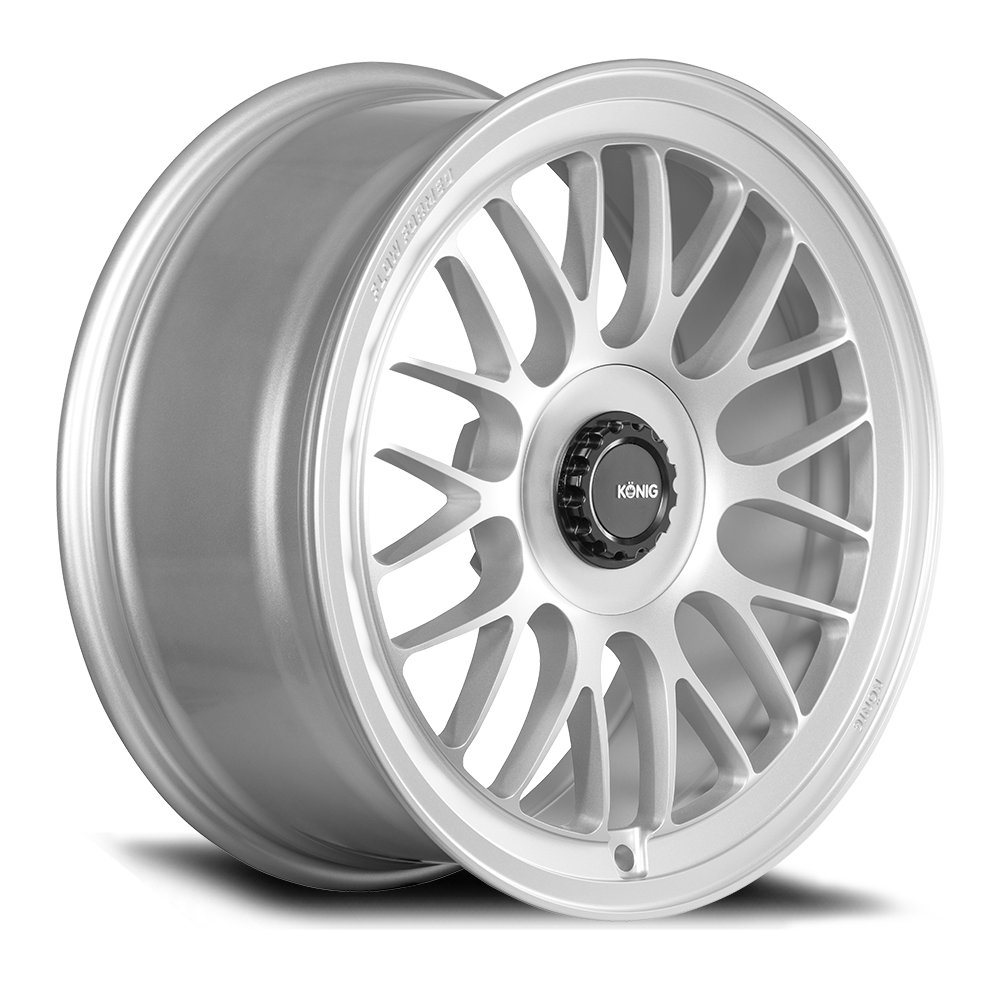

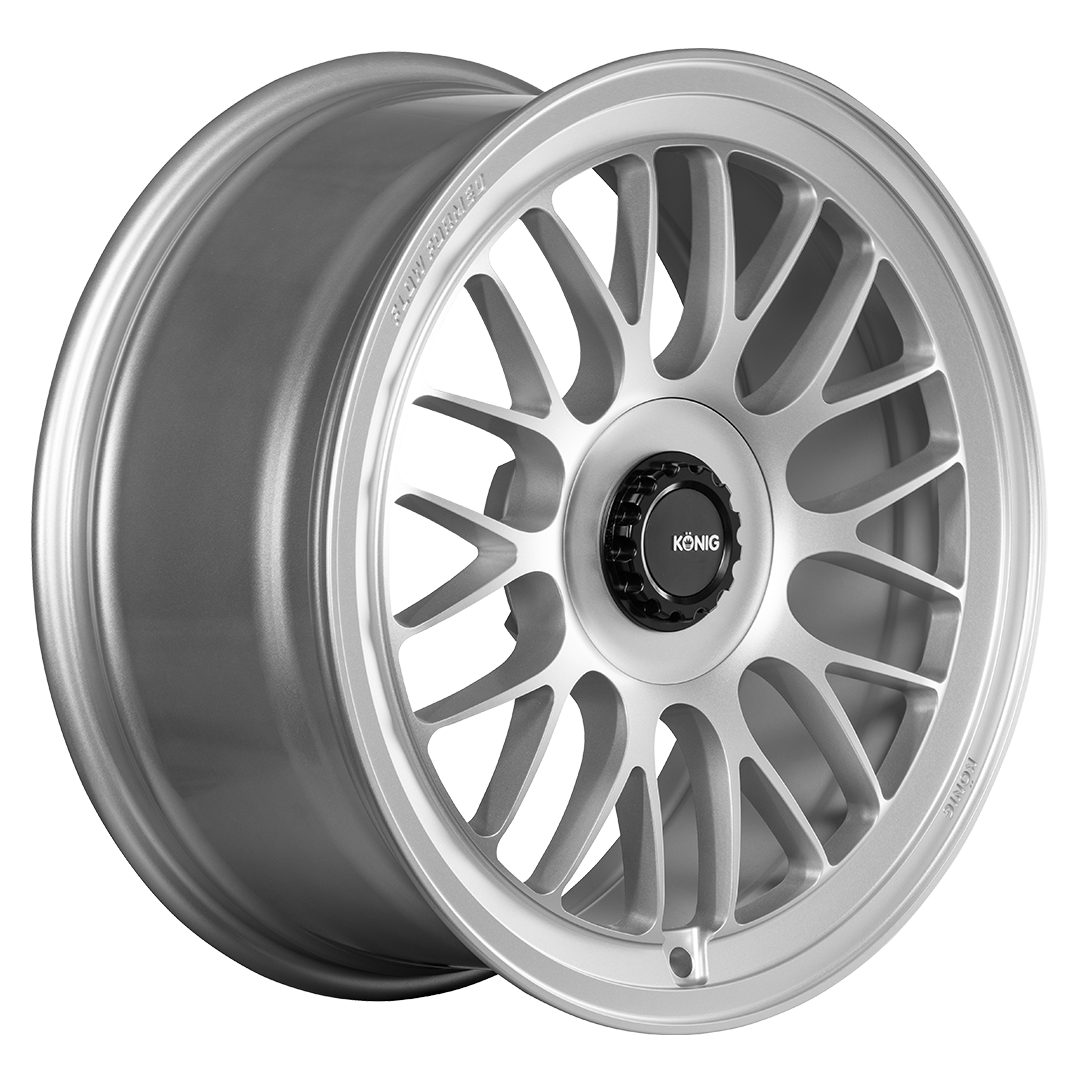

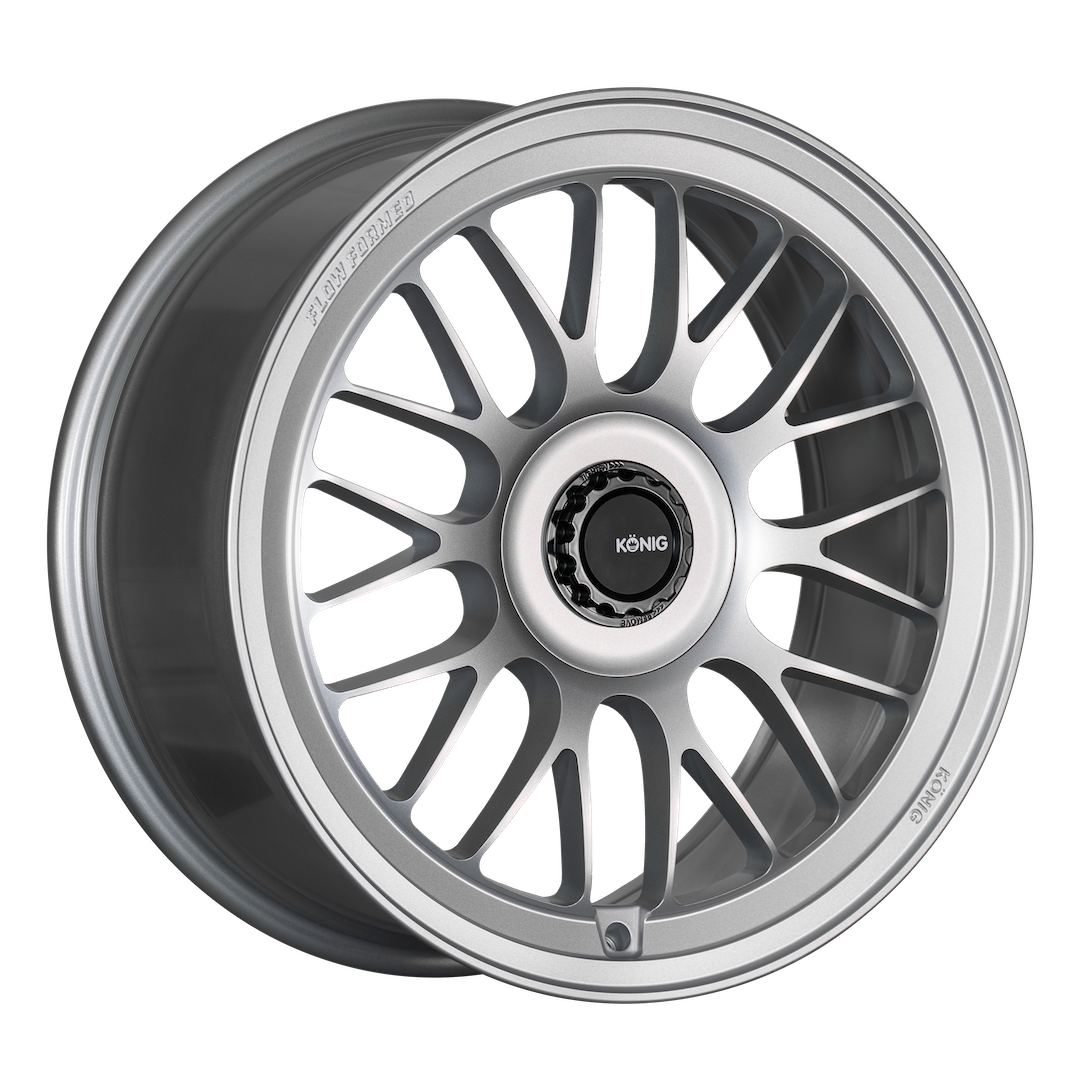

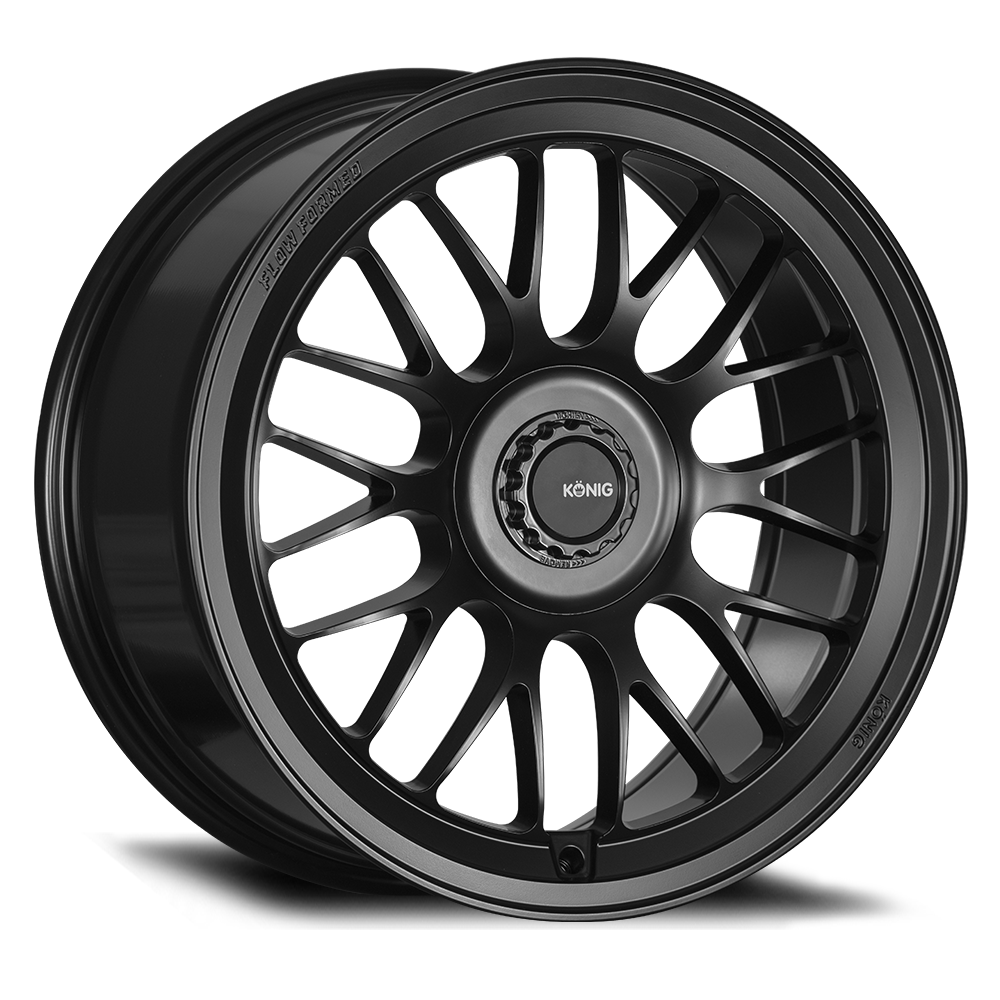

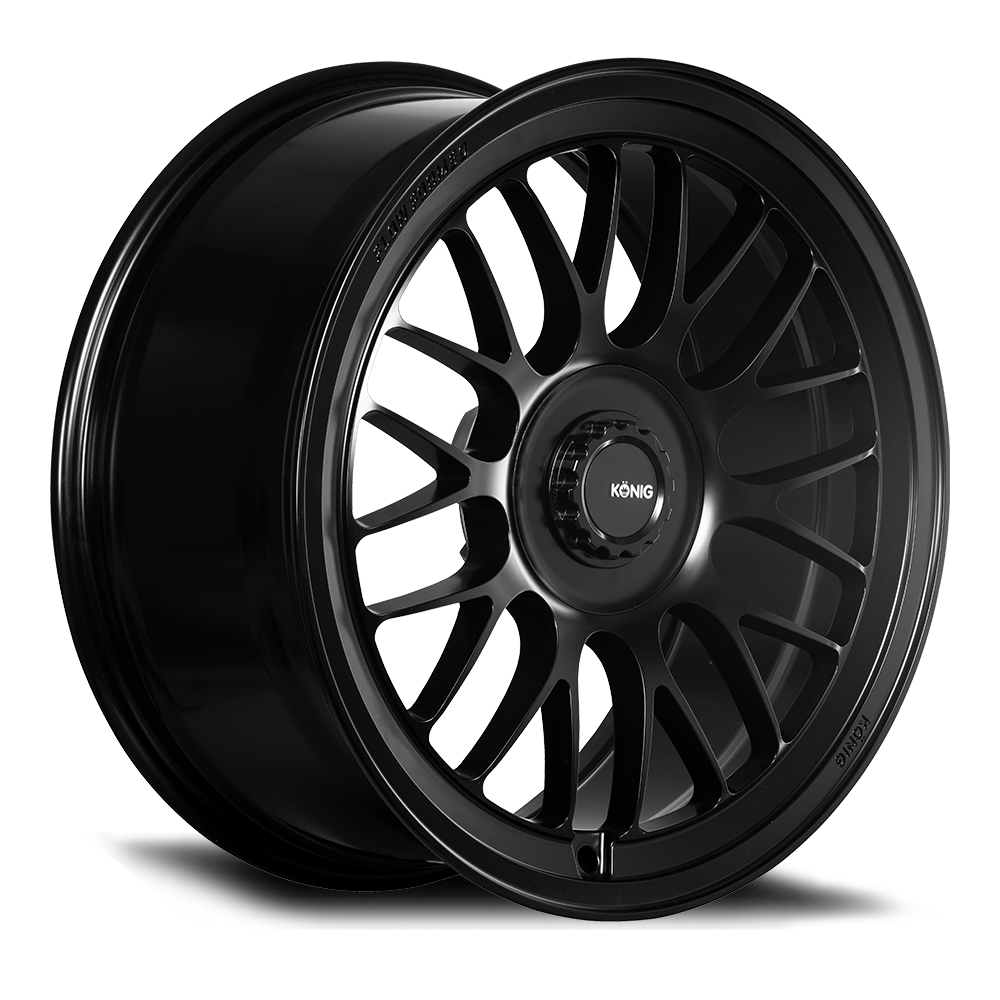

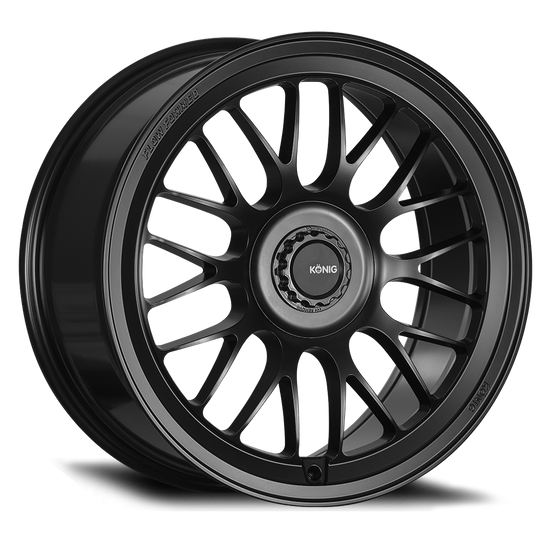

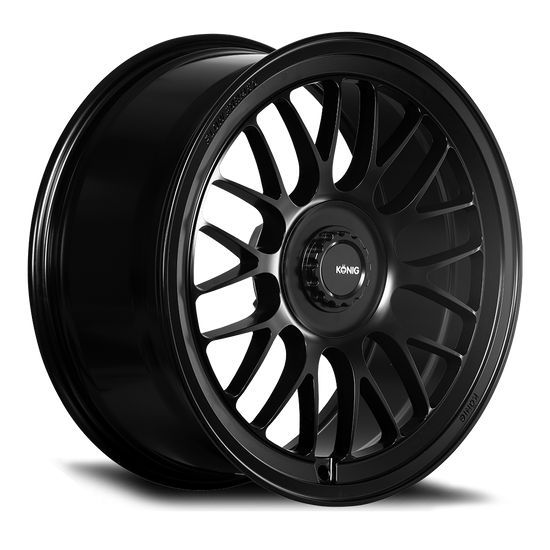

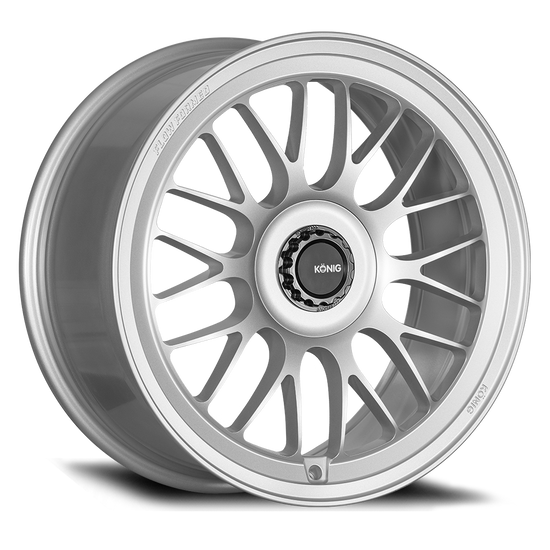

Crafted specifically for the demands of heavier Crossovers and SUVs platforms, the MRK1-XR is offers strength and style. This extension of the MRK1 line is built to handle more, with an impressive 2,200lbs. load rating that brings confidence to every drive. Available in Satin Silver and Satin Black, its mesh-style combines rugged durability with sleek design, perfectly suited for larger vehicles. Like its MRK1 cousin, the XR model is also fully compatible with our Arocover and red anodized center cap.
-
4-Lug- 5-Lug
6-Lug- Lightweight
- Low Offsets
-
- FLOW FORMED
- Back Cut
- Ball Cut
- Knurled Bead Seats
- High Offsets
-
- INCREASED TENSILE STRENGTH
- LIGHTER WEIGHTS / LOWER UNSPRUNG WEIGHT
- INCREASED ELONGATION
- GREATER SHOCK RESISTANCE
- HIGHER TOLERANCE OF RESISTANCE AGAINST FATIGUE
- LIMITED LIFETIME WARRANTY AGAINST STRUCTURAL DEFECT...details
- PROVEN HISTORY WITH OVER 40 YEARS OF WHEEL MANUFACTURING DEVELOPMENT
AMPLIFORM Features:
| KONIG PART# | SIZE | PCD | OFFSET (MM) | FINISH | CENTER BORE | MANUFACTURER TYPE | LOAD RATING | NET WEIGHT (LB) |
|---|---|---|---|---|---|---|---|---|
| MKX92512285 | 20X9 | 5X112 | 28 | SATIN BLACK | 66.56 | FLOW FORM | 2204 | |
| MKX9251228S | 20X9 | 5X112 | 28 | SATIN SILVER | 66.56 | FLOW FORM | 2204 | |
| MKX91512305 | 21X9 | 5X112 | 30 | SATIN BLACK | 66.56 | FLOW FORM | 2204 | |
| MKX9151230S | 21X9 | 5X112 | 30 | SATIN SILVER | 66.56 | FLOW FORM | 2204 | |
| MKX92514325 | 20X9 | 5X114.3 | 32 | SATIN BLACK | 73.1 | FLOW FORM | 2204 | |
| MKX9251432S | 20X9 | 5X114.3 | 32 | SATIN SILVER | 73.1 | FLOW FORM | 2204 | |
| MKX02514405 | 20X10 | 5X114.3 | 40 | SATIN BLACK | 73.1 | FLOW FORM | 2204 | |
| MKX0251440S | 20X10 | 5X114.3 | 40 | SATIN SILVER | 73.1 | FLOW FORM | 2204 | |
| MKXN1514355 | 21X9.5 | 5X114.3 | 35 | SATIN BLACK | 73.1 | FLOW FORM | 2204 | |
| MKXN151435S | 21X9.5 | 5X114.3 | 35 | SATIN SILVER | 73.1 | FLOW FORM | 2204 | |
| MKX01514405 | 21X10.5 | 5X114.3 | 40 | SATIN BLACK | 73.1 | FLOW FORM | 2204 | |
| MKX0151440S | 21X10.5 | 5X114.3 | 40 | SATIN SILVER | 73.1 | FLOW FORM | 2204 | |
| MKXN1530465 | 21X9.5 | 5X130 | 46 | SATIN BLACK | 71.6 | FLOW FORM | 2204 | |
| MKXN153046S | 21X9.5 | 5X130 | 46 | SATIN SILVER | 71.6 | FLOW FORM | 2204 | |
| MKX11530585 | 21X11 | 5X130 | 58 | SATIN BLACK | 66.56 | FLOW FORM | 2204 | |
| MKX1153058S | 21X11 | 5X130 | 58 | SATIN SILVER | 66.56 | FLOW FORM | 2204 |

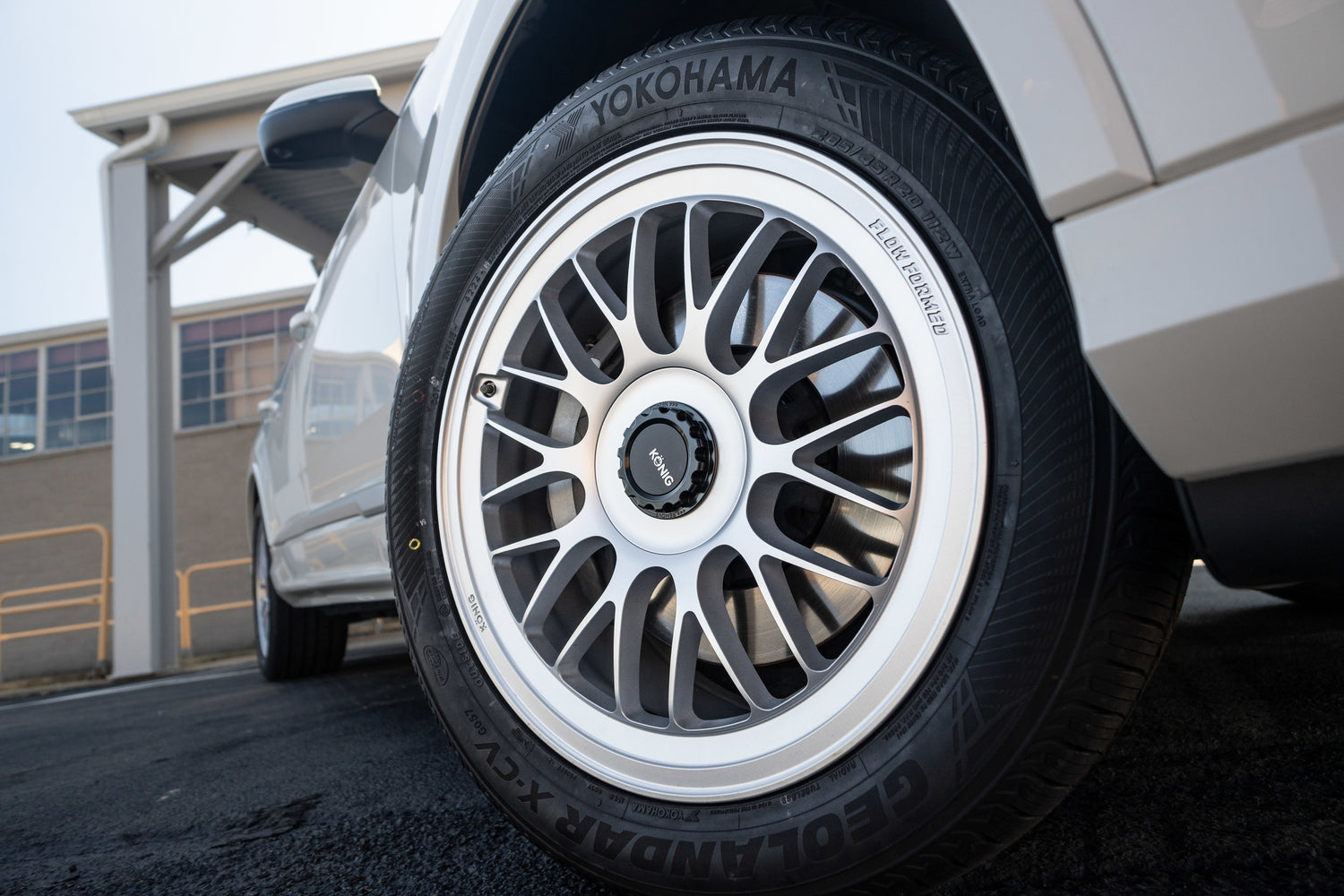

Tour the MRK1 XR
Applying a motorsport-inspired look to larger vehicles is
certainly no easy task. Each wheel needs a high load rating for dependability
and that’s exactly why the MRK1-XR was developed. It’s 2,200lbs. rating is more
than enough to support today’s popular Crossover and SUV models so that you don’t
have to sacrifice style and performance. Designed to complement any body style,
the mesh face is backed by a sleek cover that hides the vehicle’s lug area
entirely. Want to change up the look quickly and easily? That’s where our
Arocover, which mounts directly to the face of the MRK1-XR using a threaded
aluminum center cap, comes into play and you can even take that a step further
with available red anodized caps as well.
FEA Analysis
Utilizing Finite Element Analysis (FEA) and advanced engineering simulation software we push every wheel design through countless variations of impact, bending and stress, simulations to optimize wheel weight, increase strength and rigidity and reinforce high-stress areas. FEA allows us to do hundreds of minor adjustments and simulations before we even get to the physical tests.
Heritage Built. Performance Driven.
Konig isn't just about flashy looks. We've been meticulously crafting wheels for over four decades, constantly evolving our manufacturing processes to achieve the perfect balance of strength, weight, and style. When you choose Konig, you're not just getting a wheel, you're choosing a trusted partner with a proven track record of innovation and performance.
Quality Control
Our commitment to quality control goes beyond aesthetics. We utilize advanced inspection methods and rigorous testing procedures to ensure every wheel meets the highest performance standards.

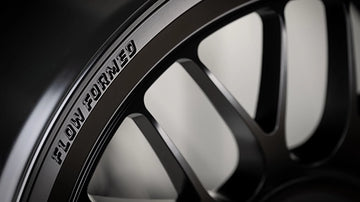

Isn't Flow Formed Just Cast?
Diving deep into the advanced engineering that powers Flow Formed wheels. Discover the innovation that makes these wheels lighter, stronger, and precision-crafted for ultimate performance.
